    Manufacturer: Kinedyne Corporation

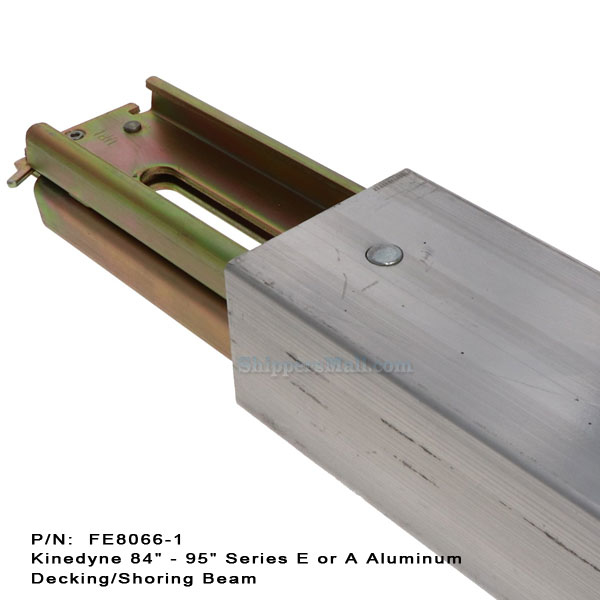

    Aluminum Beam for 96" Trailers.

    $80.16
    Kinedyne Series FE8066 Aluminum Decking/Shoring Beams are made from extruded high strength Aluminum, designed to give maximum strength at the least possible weight. Length is 85.6" to 95.0" for 96.0" Trailers
    SKU: KN-FE8066-1
    Manufacturer part number: FE8066-1
    Shipping:: Same Day or Next Day

    Kinedyne Decking / Shoring Beam 8066-1

    Head assemblies are all Steel, Zinc plated and tapered for ease of operation. Trigger and spring are built for long-lasting postive lock control.

    Kinedyne beams now include a new KwikLatch beam header release mechanism and a Keyhole Slot on one end of the beam. When used with the E-Key Fitting shown on the next page, the Keyhole Slot provides a convenient storage solution in the trailer for beams when not in use to secure cargo.

    • Decking/Vertical Rating: 2,200 lbs./1000 kgs.
    • Shoring/Horizontal Rating: 2,000 lbs./910 kgs.
    • Adjusts from: 85.6" to 95.0" for 96.0" Trailers

    Note: Working Load Limit based based on evenly distributed load.

    Standard Packaging; 25,Skid Qty: 100, Priced Per: EACH

    Products specifications
    Working Load Limit WLL lbs. 2200
    Trailer Width 84.6" to 95.0" for 96" Trailers
    Material Aluminum
    Track Type A Track
    Track Type E Track
    Write your own review
    • Only registered users can write reviews
    • Bad
    • Excellent

    Kinedyne Decking / Shoring Beam 8066-1

    Head assemblies are all Steel, Zinc plated and tapered for ease of operation. Trigger and spring are built for long-lasting postive lock control.

    Kinedyne beams now include a new KwikLatch beam header release mechanism and a Keyhole Slot on one end of the beam. When used with the E-Key Fitting shown on the next page, the Keyhole Slot provides a convenient storage solution in the trailer for beams when not in use to secure cargo.

    • Decking/Vertical Rating: 2,200 lbs./1000 kgs.
    • Shoring/Horizontal Rating: 2,000 lbs./910 kgs.
    • Adjusts from: 85.6" to 95.0" for 96.0" Trailers

    Note: Working Load Limit based based on evenly distributed load.

    Standard Packaging; 25,Skid Qty: 100, Priced Per: EACH

    PRICE BREAKS - The more you buy, the more you save
    Quantity
    10+
    25+
    50+
    Price
    $67.83
    $62.99
    $58.79
    Products specifications
    Working Load Limit WLL lbs. 2200
    Trailer Width 84.6" to 95.0" for 96" Trailers
    Material Aluminum
    Track Type A Track
    Track Type E Track
