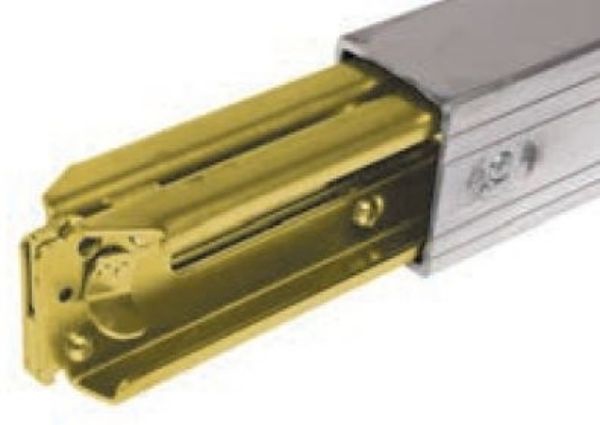

Head assemblies are all Steel, Zinc Plated and tapered for ease of operation. Trigger and spring are built for long-lasting postive lock control. made from extruded high strength Aluminum, designed to give maximum strength at the least possible weight.
Kinedyne beams now include a new KwikLatch beam header release mechanism and a Keyhole Slot on one end of the beam. When used with the E-Key Fitting shown on the next page, the Keyhole Slot provides a convenient storage solution in the trailer for beams when not in use to secure cargo.
- Decking/Vertical Rating: 2,200 lbs./1000 kgs.
- Shoring/Horizontal Rating: 2,000 lbs./910 kgs.
- Note: Working Load Limit based on evenly distributed load.
- Adjusts from: 97.2" to 106.6" for 102" High Cube Trailers.
- Weight: 21.0 lbs., 9.5 kgs.
Standard Packaging; 25, Skid Qty: 100, Priced Per: EACH
