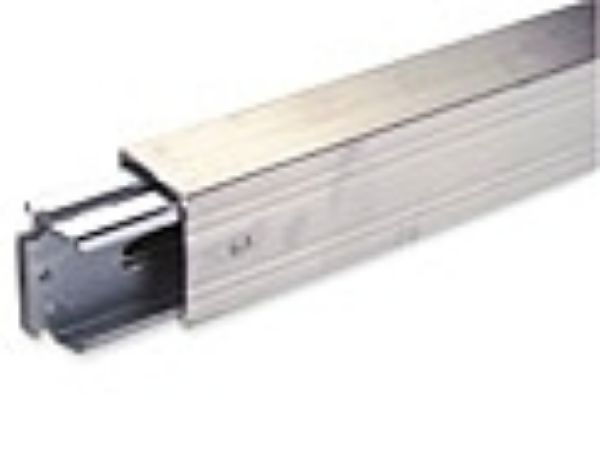

    Series E or A Aluminum Beam for 96" and 102" Trailers, Heavy Duty Beam Head

    Manufacturer: Kinedyne Corporation
    Kinedyne Series FE8066-3H Aluminum Decking/Shoring beam with Heavy Duty Heads are made from extruded high strength Aluminum, designed to give maximum strength at the least possible weight.
    WILL NOT SHIP VIA UPS, WE HAVE TO QUOTE SHIPPING COST
    SKU: KN-FE8066-3H
    Manufacturer part number: FE8066-3H
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    25+
    50+
    125+
    250+
    Price
    $122.32
    $113.59
    $106.01
    $102.59
    $132.52
    This product has a minimum quantity of 10
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Kinedyne Aluminum Decking beams Series FE8066  are made from extruded high strength Aluminum, designed to give maximum strength at the least possible weight. Head assemblies are all Steel, Zinc Plated and tapered for ease of operation. Trigger and spring are built for long-lasting postive lock control. Special length beams also available.

    Kinedyne beams now include a new KwikLatch beam header release mechanism and a Keyhole Slot on one end of the beam. When used with the E-Key Fitting shown on the next page, the Keyhole Slot provides a convenient storage solution in the trailer for beams when not in use to secure cargo.

    • Decking/Vertical Rating: 2,200 lbs./1000 kgs.
    • Shoring/Horizontal Rating: 2,000 lbs./910 kgs.
    • Note: Working Load Limit based on evenly distributed load.
    • Adjusts from: 92.9" to 102.3" for 96" and 102" Trailers
    • Weight: 18.8 lbs., 8.5 kgs.

    Standard Packaging; 25,Skid Qty: 100, Priced Per: EACH

    This item may be too large for UPS Shipping. Is your order over 70 pounds? Or maybe too long or large? Then we will quote shipping cost to get the best LTL Shipping Rates.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.
    • Keep in mind, we do allow "Collect Shipping" on your carrier account. Choose collect shipping and enter in the carrier and the carrier acct # during the checkout process.

    Our goal is always to get the cheapest shipping cost available.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    Length (inches) 102
    Material Aluminum
    Type A Track, E Track
