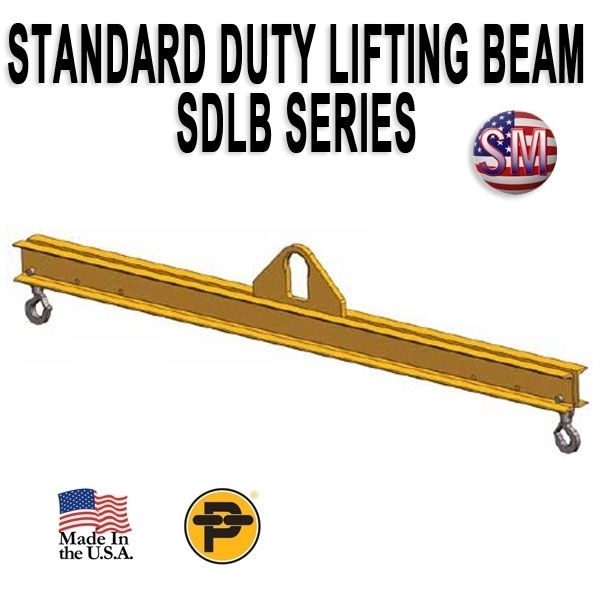

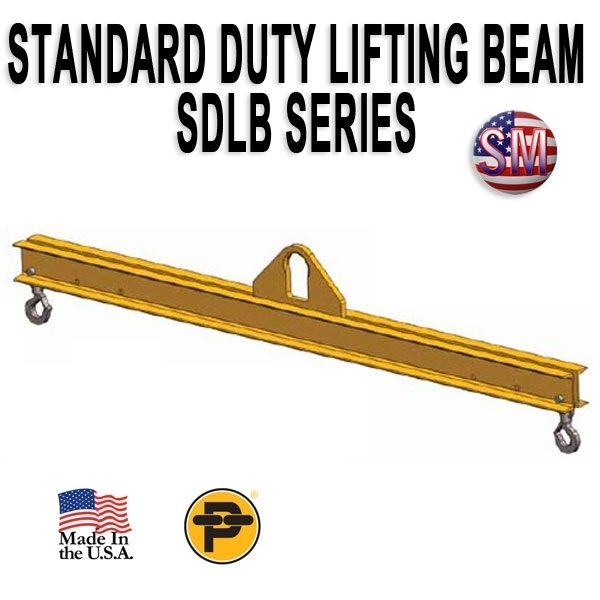

Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-20-12

Lifting Capacity 20 Ton with a 12 ft. Outside Spread

Benifits:

  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
  • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Shackle Lugs
  • Faspins
  • Integrated beam stands
Products specifications
Beam TypeSDLB Standard Duty Lifting Beam
Ton Capacity (approx filter)4 to 20
Capacity Tons20
Outside Spread (Ft.)12
Headroom38
Bail Height0.63
Bail Opening Width5
Bail Opening Height9
Bail Thickness1.5
Hook Opening2.27
Weight lbs.1585
