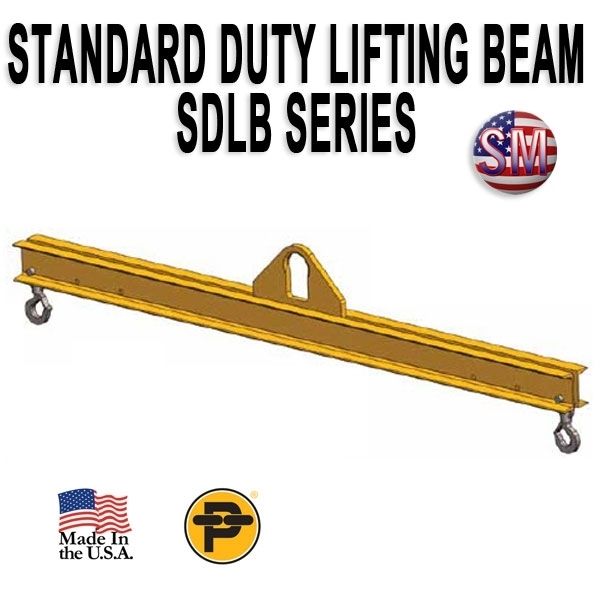

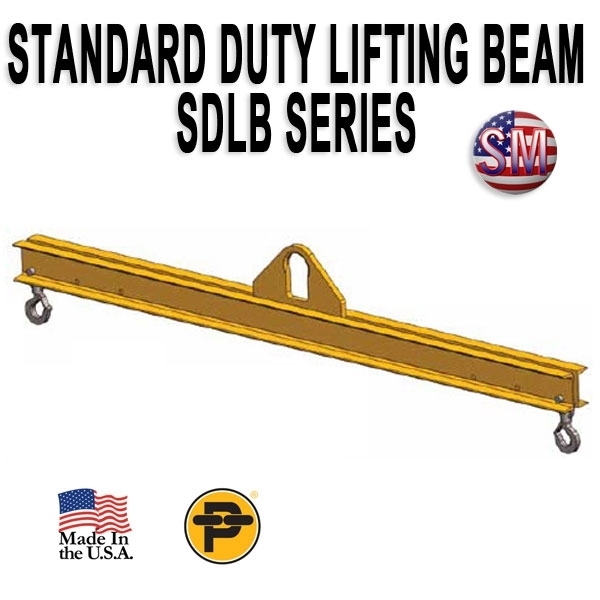

    Channel Lifting Beam - 16 ft. with 5 Ton Capacity - Standard Duty - SDLB- 5-16

    This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
    SKU: PL-SDLB-5-16
    Manufacturer part number: SDLB-5-16
    $6,714.64
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-5-16

    Lifting Capacity 5 Ton with a 16 ft. Outside Spread

    Benifits:

    • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
    • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
    • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Lower headroom bail
    • Additional hooks
    • Shackle Lugs
    • Faspins
    • Integrated beam stands
    Products specifications
    Beam TypeSDLB Standard Duty Lifting Beam
    Ton Capacity (approx filter)4 to 20
    Capacity Tons5
    Outside Spread (Ft.)16
    Headroom30
    Bail Height0.63
    Bail Opening Width4
    Bail Opening Height7
    Bail Thickness1.25
    Hook Opening2
    Weight lbs.1185
