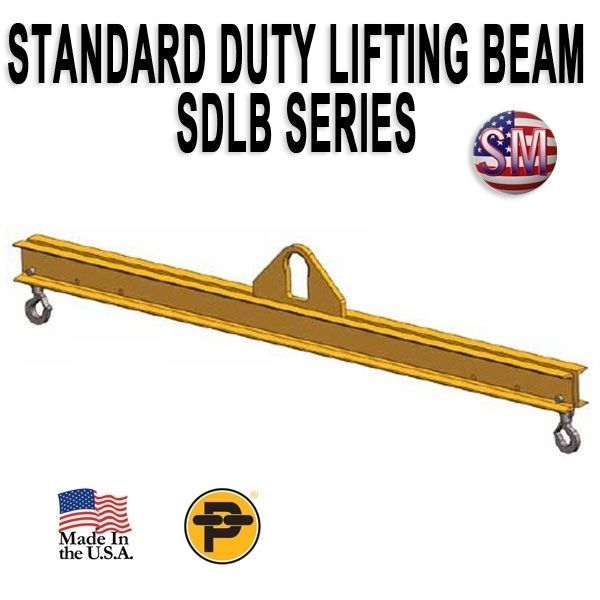

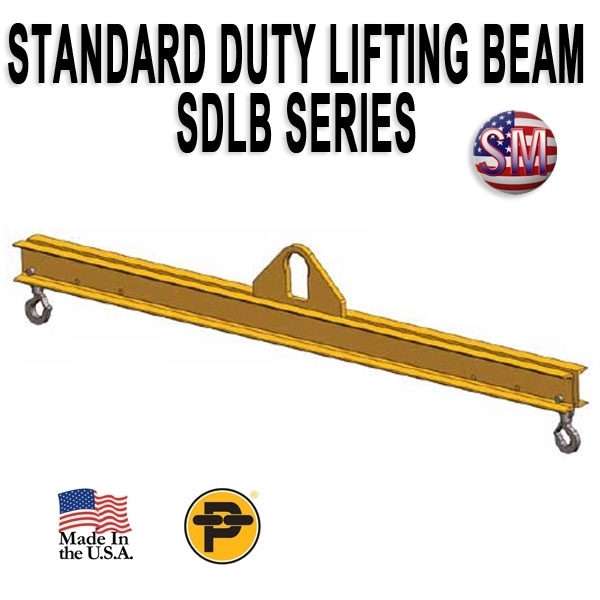

    Channel Lifting Beam - 3 ft. with 20 Ton Capacity - Standard Duty - SDLB- 20-3

    $3,892.50
    This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
    SKU: PL-SDLB-20-3
    Manufacturer part number: SDLB-20-3

    Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-20-3

    Lifting Capacity 20 Ton with a 3 ft. Outside Spread

    Benifits:

    • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
    • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
    • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Lower headroom bail
    • Additional hooks
    • Shackle Lugs
    • Faspins
    • Integrated beam stands
    Products specifications
    Beam Type SDLB Standard Duty Lifting Beam
    Ton Capacity (from - to) 4 to 20
    Capacity Tons 20
    Outside Spread (Ft.) 3
    Headroom 29
    Bail Height 0.63
    Bail Opening Width 5
    Bail Opening Height 9
    Bail Thickness 1.5
    Hook Opening 2.27
    Weight lbs. 235
