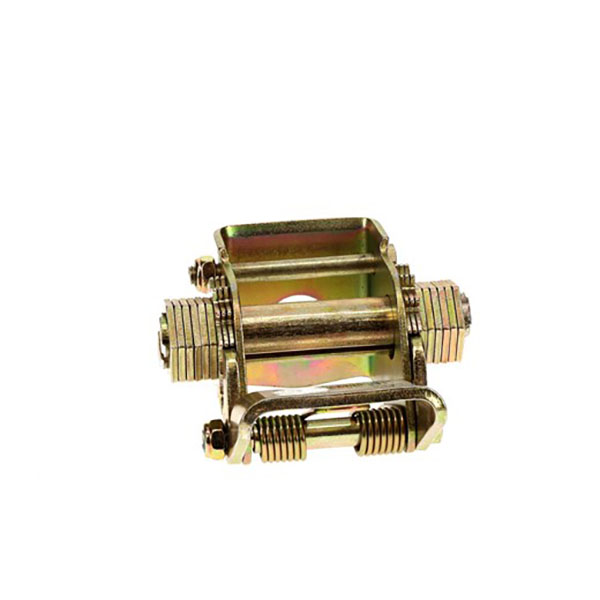

    Lashing Winch, Single Mounting Hole

    Manufacturer: Ancra International
    Lashing Winch, With double hex drive and single mounting hole.
    High-strength steel components for high performance
    Double hex drive design with release latch offers the quick release and easy operation of a ratchet buckle
    Can be bolted or welded onto the truck or trailer with a single mounting hole
    Working load limit: 2,500 lbs
    SKU: 48496-11
    Manufacturer part number: 48496-11
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    20+
    40+
    80+
    160+
    Price
    $18.80
    $17.35
    $16.11
    $14.10
    $22.56
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Shipping:: Usually ships within 1-2 days

    Double Hex Drive Lashing Winch

    Features

    Double hex drive lashing winch with single mounting hole boasts high strength as well as versatility and efficiency, making it an ideal choice for quick tie-down applications. Made of high-quality steel components, the lashing winch provides plenty of strength for securing heavy-duty cargo. The double hex design allows the winch to be tightened from either side, and the quick release latch allows the mandrel to freely spin when activated, helping you get the job done quicker.

    The double hex drive lashing winch with single mounting hole can be easily bolted or welded to your truck or trailer for convenient access. With a working load limit of 2,500 lbs and double hex drive release latch, the combination winch makes for a versatile and efficient solution for tying down heavy-duty cargo.

    Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

    Specifications

    Weight (lbs) 2.2
    Weight (kgs) 1
    Overall Width (inches) 4.4
    Inside Frame Width (inches) 2.1
    Frame Height (inches) 2.5
    Frame Depth (inches) 4.9
    Maximum width of strap used with (inches) 4
    WLL - Webbing (lbs) 2500
    WLL - Webbing (kgs) 1135
    WLL - w/Webbing (lbs) 2500
    WLL - w/Webbing (kgs) 1135
    Stamped w/WLL true

    Part number 48496-11

    Products specifications
    Type Bolt On
    Brand Ancra Intl (All)
