    SSLB - 149 Ton - 3 ft. Outside Spread - SSLB-149-3

    $8,887.50
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 149 Ton - 3 ft. Outside Spread - SSLB-149-3
    SKU: PL-SSLB-149-3
    Manufacturer part number: SSLB-149-3

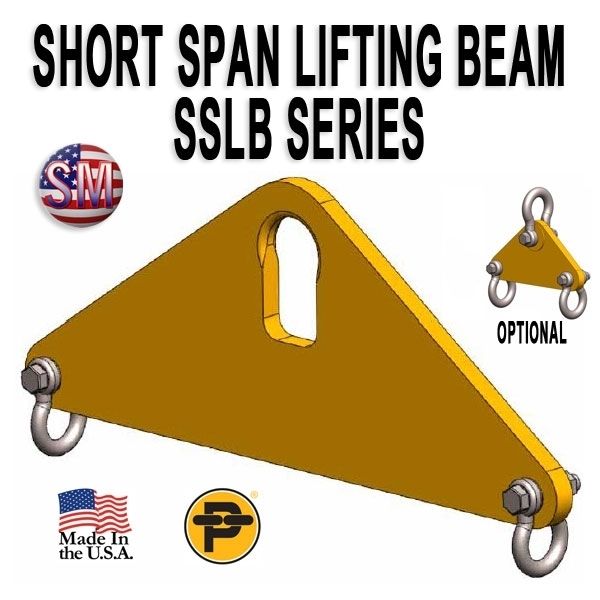

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-149-3

    Lifting Capacity 149 Ton with a 3 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam Type SSLB Short Span Lifting Beam (plate style)
    Capacity Tons 149
    Weight lbs. 1350
    Outside Spread (Ft.) 3
    Headroom 47.2
    Bail Height 6.00
    Bail Opening Height 22
    Bail Opening Width 9
    Bail Thickness 0.50
    Shackle Size 3
    Shackle Clearance 8.8
