    SSLB - 1Ton - 2 ft. Outside Spread - SSLB-.1-2

    $573.75
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 1Ton - 2 ft. Outside Spread - SSLB-.1-2
    SKU: PL-SSLB-1-2
    Manufacturer part number: SSLB-1-2

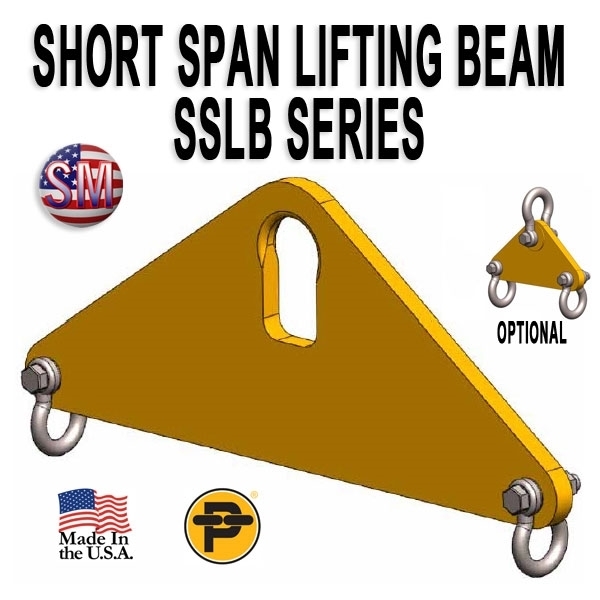

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-1-2

    Lifting Capacity 1Ton with a  2 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam Type SSLB Short Span Lifting Beam (plate style)
    Capacity Tons 1
    Weight lbs. 40
    Outside Spread (Ft.) 2
    Headroom 9.6
    Bail Height 0.88
    Bail Opening Height 5
    Bail Opening Width 3
    Bail Thickness 0.50
    Shackle Size 5/8
    Shackle Clearance 1.6
