    SSLB - 20 Ton - 3 ft. Outside Spread - SSLB-20-3

    $1,288.13
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 20 Ton - 3 ft. Outside Spread - SSLB-20-3
    SKU: PL-SSLB-20-3
    Manufacturer part number: SSLB-20-3

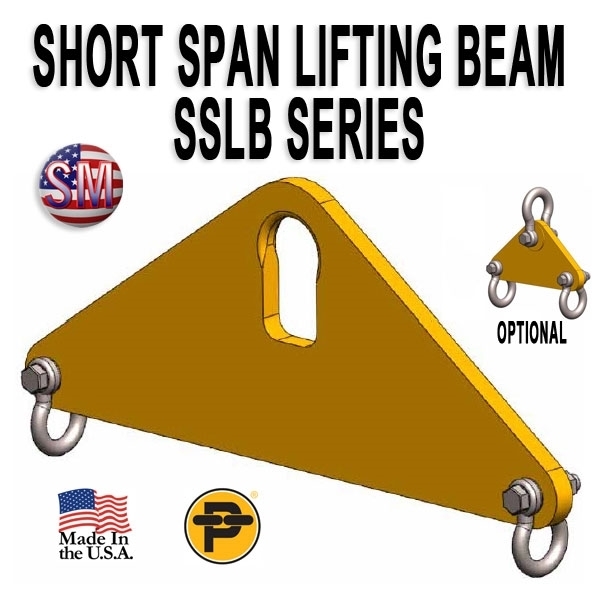

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-20-3

    Lifting Capacity 20 Ton with a 3 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam Type SSLB Short Span Lifting Beam (plate style)
    Capacity Tons 20
    Weight lbs. 220
    Outside Spread (Ft.) 3
    Headroom 20.1
    Bail Height 2.50
    Bail Opening Height 9
    Bail Opening Width 5
    Bail Thickness 0.50
    Shackle Size 1-1/4
    Shackle Clearance 3.1
