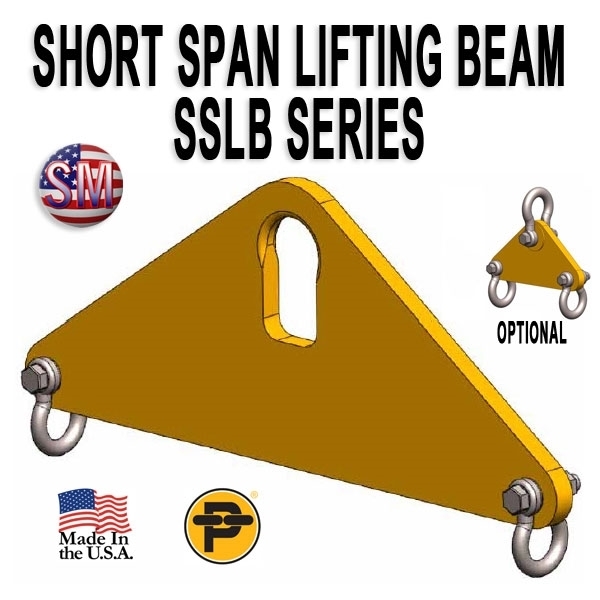

SSLB - 3Ton - 3 ft. Outside Spread - SSLB-.3-3

Be the first to review this product
This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 3Ton - 3 ft. Outside Spread - SSLB-.3-3
SKU: PL-SSLB-3-3
Manufacturer part number: SSLB-3-3
$973.93
i h

Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-3-3

Lifting Capacity 3 Ton with a 3 ft. Outside Spread

Benifits:

  • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
Products specifications
Beam TypeSSLB Short Span Lifting Beam (plate style)
Capacity Tons3
Weight lbs.80
Outside Spread (Ft.)3
Headroom10.8
Bail Height1.25
Bail Opening Height5
Bail Opening Width3
Bail Thickness0.50
Shackle Size3/4
Shackle Clearance1.8
