    SSLB - 50 Ton - 2 ft. Outside Spread - SSLB-50-2

    $2,089.50
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 50 Ton - 2 ft. Outside Spread - SSLB-50-2
    SKU: PL-SSLB-50-2
    Manufacturer part number: SSLB-50-2

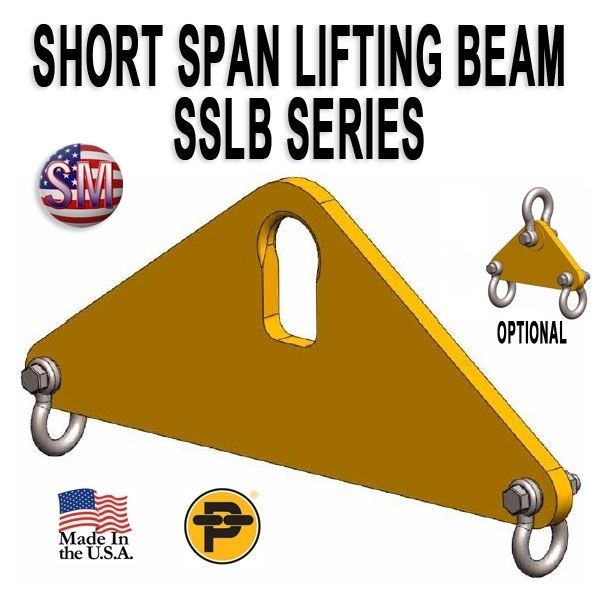

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-50-2

    Lifting Capacity 50 Ton with a 2 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam Type SSLB Short Span Lifting Beam (plate style)
    Capacity Tons 50
    Weight lbs. 440
    Outside Spread (Ft.) 2
    Headroom 31
    Bail Height 3.63
    Bail Opening Height 16
    Bail Opening Width 7
    Bail Thickness 0.50
    Shackle Size 1-3/4
    Shackle Clearance 4.5
