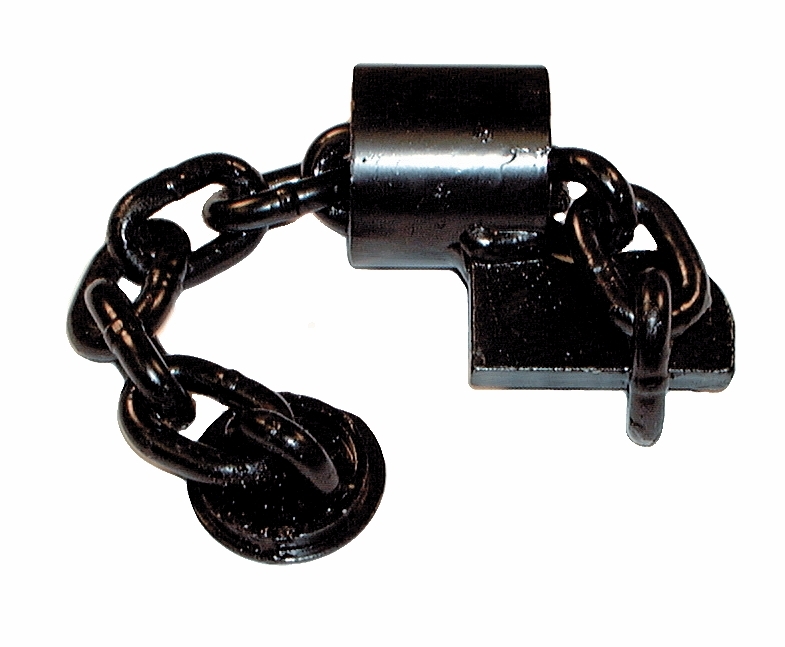

Standard Grade 43 Floor Chain Tie-Down

Kinedyne's floor chain tie-down is for use on steel frame flatbed trailers with standard hardwood decks. It is a self-storing, convenient anchor point for securing loads. Welds to trailer cross member. It mounts flush with the standard hard wood trailer deck to prevent interference during loading or unloading.

Working Load Limit: 5,000 lbs./2270 kgs.

Minimum weld requirements are 1/4" filet weld around entire contact surface and 1/8" penetration.

Weight: 2.8 lbs., 1.3 kgs.
