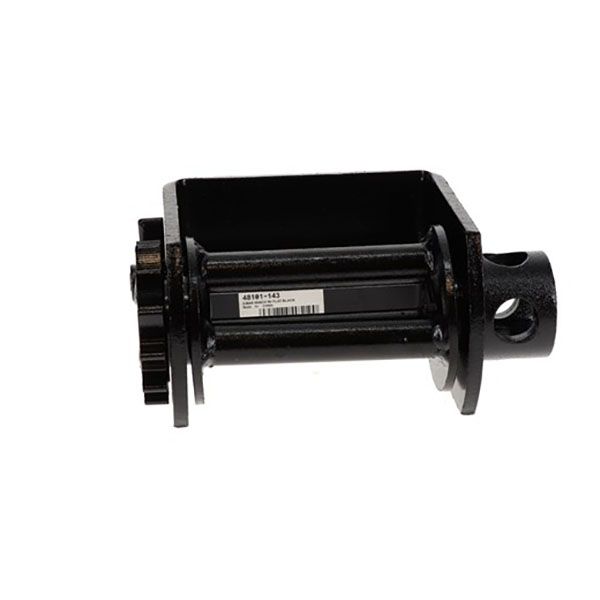

    3-Bar Weld-On Bottom Mount Web Winch

    Manufacturer: Ancra International
    Strong steel components for reliable performance
    Durable, salt spray-tested black powder coat finish for corrosion resistance
    3-bar design for easy strap insertion during snow and ice conditions with weld-on bottom mount configuration 
    Working load limit: 6,000 lbs
    SKU: 48101-143
    Manufacturer part number: 48101-143
    PRICE BREAKS - The more you buy, the more you save
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Shipping:: Usually ships within 1-2 days

    Web Winch - 3-Bar - Standard Bottom Mount


    3-bar weld-on bottom mount web winch can be welded to a trailer for maximum sturdiness and the 3-bar design prevents the mandrel from freezing up. Made with high-quality steel for strength and durability, including a high-strength alloy pawl pin and heavy-duty 3-bar mandrel, you can depend on the bottom mount web winch for securing a variety of heavy-duty cargo. The 3-bar design prevents the mandrel from freezing up during ice and snow conditions, making strap insertion far easier and quicker. A durable black powder coat finish protects the bottom mount web winch from rust and corrosion with a proven resistance to standard salt spray testing up to 250 hours to ensure years of service.

    The 3-bar weld-on bottom mount web winch can be easily welded to  your truck or trailer for maximum sturdiness and quick access. With a working load limit of 6,000 lbs, weld-on configuration, and 3-bar design, the weld-on bottom mount web winch makes for a sturdy and convenient solution for tying down heavy-duty cargo.

    Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.


    Weight (lbs) 11.3
    Weight (kgs) 5.1
    Overall Width (inches) 8.6
    Inside Frame Width (inches) 4.8
    Frame Height (inches) 5.5
    Frame Depth (inches) 4
    Maximum width of strap used with (inches) 4
    WLL - w/Webbing (lbs) 6000
    WLL - w/Webbing (kgs) 2724
    Stamped w/WLL true
    Finish Powder Coat

    Part Number 48101-143

    Products specifications
    Type Weld-On
    Brand Ancra Intl (All)
