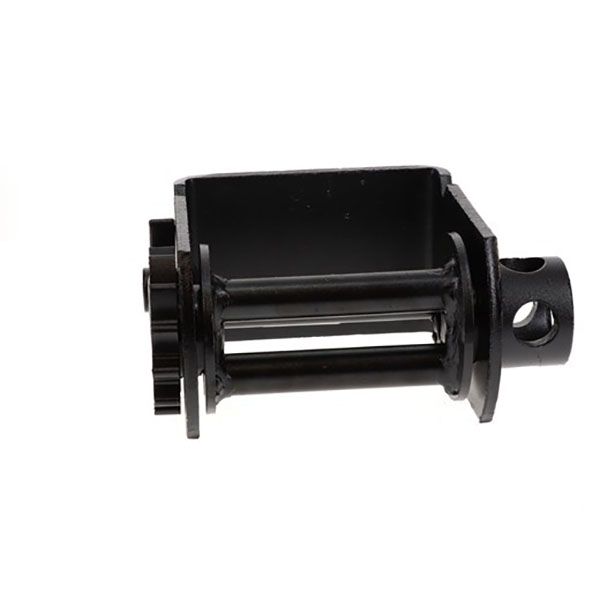

Web Winch - 3-Bar - Standard Slider for C Track

Features

3-bar standard C track sliding web winch is designed to prevent the mandrel from freezing up during icy conditions, allowing for easier strap insertion. A high-strength alloy pawl pin and a heavy-duty steel frame provide quality strength for securing heavy-duty cargo, while the smooth, 3-bar steel mandrel protects the mandrel from freezing conditions and your straps from abrasion. For even greater durability, Ancra added a black powder coat finish to the winch, ensuring long-lasting performance with a tested 250 hours of resistance to standard salt sprays.

The 3-bar standard C track sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra C track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs and 3-bar design, the sliding web winch makes for a versatile and reliable solution for tying down heavy-duty cargo.

The standard C track sliding web winch is compatible with the following Ancra track: 42357-11; 42357-12; 42357-21, or equivalent.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 10.4
Weight (kgs) 4.7
Overall Width (inches) 8.5
Inside Frame Width (inches) 4.8
Frame Height (inches) 6.1
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 6000
WLL - w/Webbing (kgs) 2724
Stamped w/WLL true
Bottom Mount false
EPDM false
Finish Powder Coat
Material Steel

Part Number 48101-173
