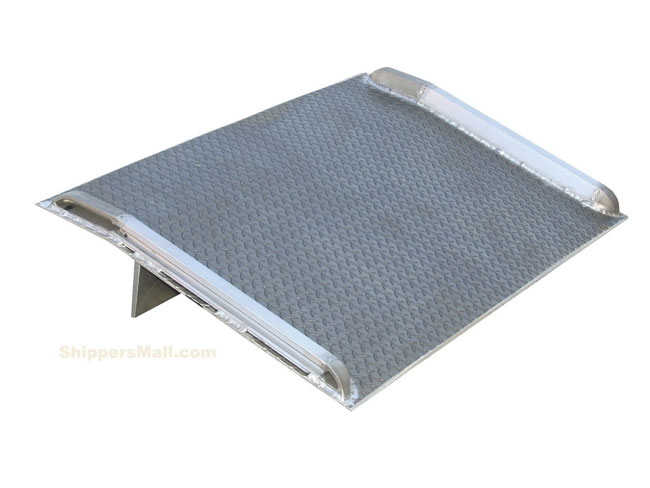

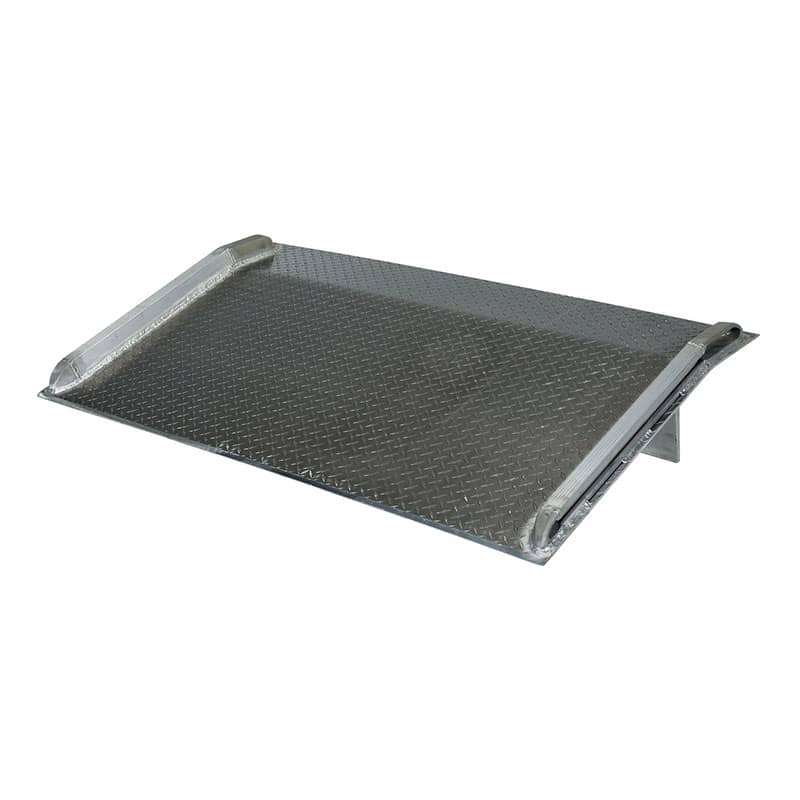

Aluminum Dock Board with Welded Curbs -15K Cap., 78" Wide

Manufacturer: Vestil Mfg
Economical boards like these are perfect for low volume fork lift and pallet truck applications.
0Types Available

Aluminum Dockboards with Welded Curbs for Trucks - 15,000 lb. Capacity & 78 in. Wide

Strong welded curbs prevent flexing and are more durable than bolt-on curbs. The aluminum curbs are smooth, tapered, and extend the length of the dockboard. Edges are smooth and easy to grip, set flush to reduce wear and burring. Aluminum curbs welded to aluminum plate react to a load as one unit versus steel curbs bolted to aluminum plates, which react individually to a load, creating unusual stress at the fasteners. Curbs stay on board, not loose, and do not require continual tightening as bolt-on curbing does.

  • Ideal for pallet truck applications that requireer boards.
  • 9" lips are standard.
  • Remember side curbs take up 5 to 5 1/2" of usable width.
  • Welded legs prevent movement while loading and unloading.
  • Uneven legs allow the dockboard to sit canted for easy pickup with a fork truck.
  • All boards are made from a special non-slip diamond tread surface.
  • All welded aluminum construction makes boards as light as possible to give years of trouble-free service.
  • Beveled edges allow for smooth entry and exit.
  • Treadplate design ensures positive traction.
  • Bend is 11° and 9" from beveled edge.
  • Legs are 12" from beveled edge.
  • Manufactured OSHA compliant.

Capacities are based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed, and frequency of use must be considered. If using your dockboard 3 shifts and very frequently, we recommend the Steel (TS-series) dockboards.

Aluminum Truck Dockboard 15000 Lbs 78X36 - Vestil BTA-15007836
Aluminum Truck Dock Board 15000 Lbs 78X36
Aluminum Dockboard - Capacity 15,000 lb.

78" Wide X 36"

SKU: SM-VS-BTA-15007836
Manufacturer part number: BTA-15007836
GTIN: 00691215009126
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,429.33
$1,420.88
$1,412.52
$1,404.26
$1,446.55
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 15000 Lbs 78X42 - Vestil BTA-15007842
Aluminum Truck Dock Board 15000 Lbs 78X42
Aluminum Dockboard - Capacity 15,000 lb.

78" Wide X 42"

SKU: SM-VS-BTA-15007842
Manufacturer part number: BTA-15007842
GTIN: 00691215009133
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,616.89
$1,607.33
$1,597.87
$1,588.53
$1,636.37
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 15000 Lbs 78X66 - Vestil BTA-15007866
Aluminum Truck Dock Board 15000 Lbs 78X66
Aluminum Dockboard - Capacity 15,000 lb.

78" Wide X 66"

SKU: SM-VS-BTA-15007866
Manufacturer part number: BTA-15007866
GTIN: 00691215009171
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$4,302.04
$4,276.73
$4,251.72
$4,227.00
$4,353.56
i h
Shipping:: Currently ships in about 15 to 20 business days
