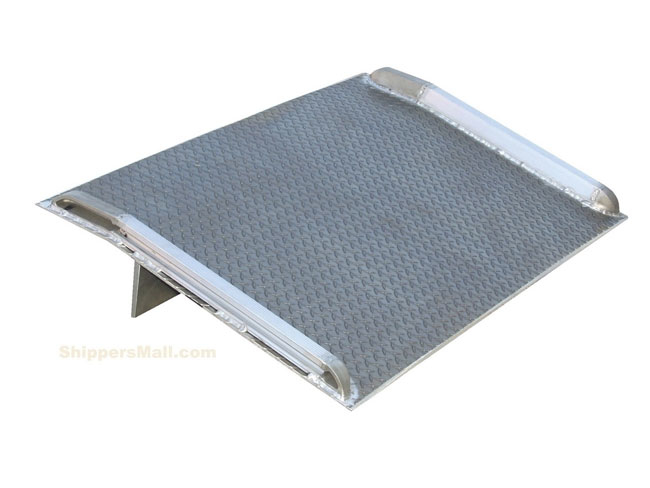

Aluminum Dock Board with Welded Curbs -20K Cap., 60" Wide

Manufacturer: Vestil Mfg
These boards are economically the best for low volume fork lift and pallet truck applications.
0Types Available

Aluminum Dockboards with Welded Curbs for Trucks - 20,000 lb. Capacity & 60 in. Wide

Strong welded curbs prevent flexing and are more durable than bolt-on Curbs.

The Aluminum curbs are smooth and tapered and extend the length of the dockboard. Edges are smooth, easy to grip, and set flush to reduce wear and burring.

Aluminum curbs welded to Aluminum plate react to a load as one unit versus steel curbs bolted to Aluminum plates which react individually to a load, creating unusual stress at the fasteners. Curbs stay on board, not loose, and do not require continual tightening as bolt-on curbing does.

  • Ideal for pallet truck applications that requireer boards.
  • 9" lips are standard.
  • Remember side curbs take up 5 to 5 1/2" of usable width.
  • Welded legs prevent movement while loading and unloading.
  • Uneven legs allow the dockboard to sit canted for easy pickup with a fork truck.
  • All boards are made from a special non-slip Diamond tread surface.
  • All welded Aluminum construction makes boards as light as possible to give years of trouble-free service.
  • Beveled Edges allow for smooth entry and exit.
  • Treadplate Design Ensures Positive traction.
  • Bend is 11° and 9" from Beveled Edge.
  • Legs are 12" from Beveled Edge.
  • Manufactured OSHA Compliant.

Capacities are based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed, and frequency that you use your dockboard must be considered.

If you're using your dockboard 3 shifts and very frequently, we recommend the Steel (TS-series) dockboards.

Aluminum Truck Dockboard 20000 Lbs 60X36 - Vestil BTA-20006036
Aluminum Truck Dock Board 20000 Lbs 60X36
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 36"

SKU: SM-VS-BTA-20006036
Manufacturer part number: BTA-20006036
GTIN: 00691215009287
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,239.15
$1,231.82
$1,224.58
$1,217.42
$1,254.08
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 20000 Lbs 60X48 - Vestil BTA-20006048
Aluminum Truck Dock Board 20000 Lbs 60X48
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 48"

SKU: SM-VS-BTA-20006048
Manufacturer part number: BTA-20006048
GTIN: 00691215009300
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,591.86
$1,582.44
$1,573.13
$1,563.93
$1,611.04
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 20000 Lbs 60X54 - Vestil BTA-20006054
Aluminum Truck Dock Board 20000 Lbs 60X54
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 54"

SKU: SM-VS-BTA-20006054
Manufacturer part number: BTA-20006054
GTIN: 00691215009317
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,811.56
$1,800.84
$1,790.25
$1,779.78
$1,833.39
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 20000 Lbs 60X60 - Vestil BTA-20006060
Aluminum Truck Dock Board 20000 Lbs 60X60
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 60"

SKU: SM-VS-BTA-20006060
Manufacturer part number: BTA-20006060
GTIN: 00691215009324
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$1,995.42
$1,983.61
$1,971.94
$1,960.41
$2,019.46
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 20000 Lbs 60X66 - Vestil BTA-20006066
Aluminum Truck Dock Board 20000 Lbs 60X66
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 66"

SKU: SM-VS-BTA-20006066
Manufacturer part number: BTA-20006066
GTIN: 00691215009331
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$2,151.76
$2,139.03
$2,126.45
$2,114.01
$2,177.69
i h
Shipping:: Currently ships in about 15 to 20 business days
Aluminum Truck Dockboard 20000 Lbs 60X72 - Vestil BTA-20006072
Aluminum Truck Dock Board 20000 Lbs 60X72
Aluminum Dockboard - Capacity 20,000 lb.

60" Wide X 72"

SKU: SM-VS-BTA-20006072
Manufacturer part number: BTA-20006072
GTIN: 00691215009348
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$2,326.65
$2,312.89
$2,299.28
$2,285.84
$2,354.69
i h
Shipping:: Currently ships in about 15 to 20 business days
