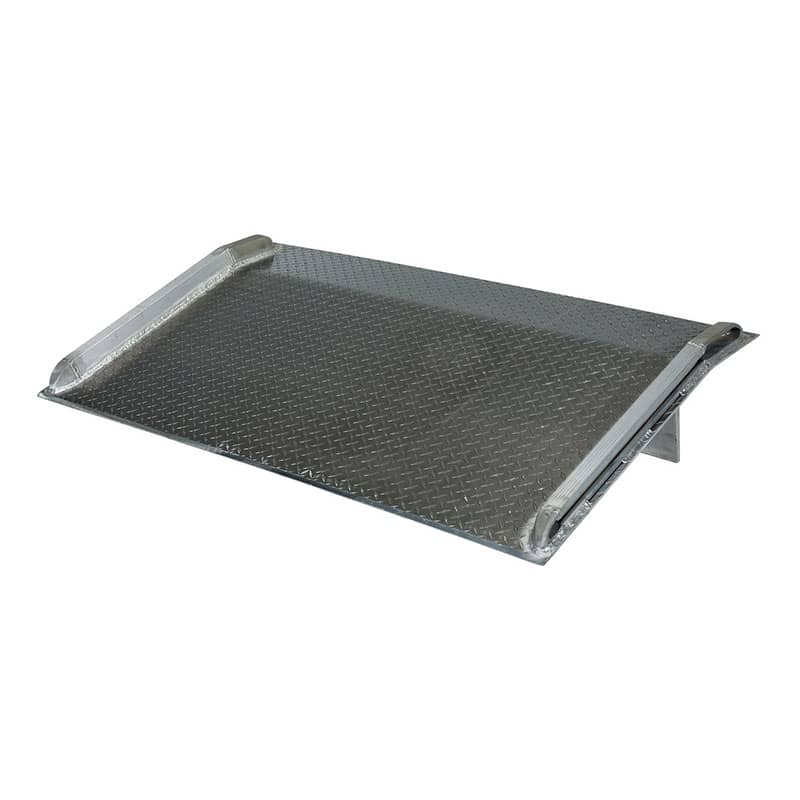

    Aluminum Dockboard with Welded Curbs -7K Cap., 66" Wide

    Manufacturer: Vestil Mfg
    These boards are the most economical boards for pallet truck applications as well as low volume fork lift applications.
    0Types Available

    Aluminum Dockboards with Welded Curbs for Trucks - 7,000 lb. Capacity & 66 in. Wide

    Strong welded curbs prevent flexing and are more durable than bolt-on Curbs.

    The Aluminum curbs are smooth and tapered and extend the length of the dockboard. Edges are smooth easy to grip, set flush to reduce wear and burring.

    Aluminum curbs welded to Aluminum plate react to a load as one unit versus steel curbs bolted to a Aluminum plates which react individually to a load creating unusual stress at the fasteners. Curbs stay on board, not loose and do not require continual tightening as bolt-on curbing does.

    • Ideal for pallet truck applications that require longer boards.
    • 9" lips are standard.
    • Remember side curbs take up 5 to 5 1/2" of usable width.
    • Welded legs prevent movement while loading and unloading.
    • Uneven legs allow the dockboard to sit canted for easy pickup with fork truck.
    • All boards are made from special non-slip Diamond tread surface.
    • All welded Aluminum construction makes boards as light as possible to give years of trouble free service.
    • Beveled Edges allow for smooth entry and exit.
    • Treadplate Design Ensures Positive traction.
    • Bend is 11° and 9" from Beveled Edge
    • Legs are 12" from Beveled Edge
    • Manufactured OSHA Compliant

    Reference: Recommended Board Length for Truck Dock Boards

    Capacities are based upon the heaviest type of equipment used plus the maximum load carriered times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency that you use your dockboard must be considered.

    If your using your dockboard 3 shifts and very frequently, we recommend the Steel (TS-series) dockboards.

    This item may be too large for UPS Shipping. Is your order over 70 pounds? Or maybe too long or large? Then we will quote shipping cost to get the best LTL Shipping Rates.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.
    • Keep in mind, we do allow "Collect Shipping" on your carrier account. Choose collect shipping and enter in the carrier and the carrier acct # during the checkout process.

    Our goal is always to get the cheapest shipping cost available.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    ModelBTA: Alum DB Welded Curbs
    Uniform Capacity (lbs.)7000
    Width (inches)66
