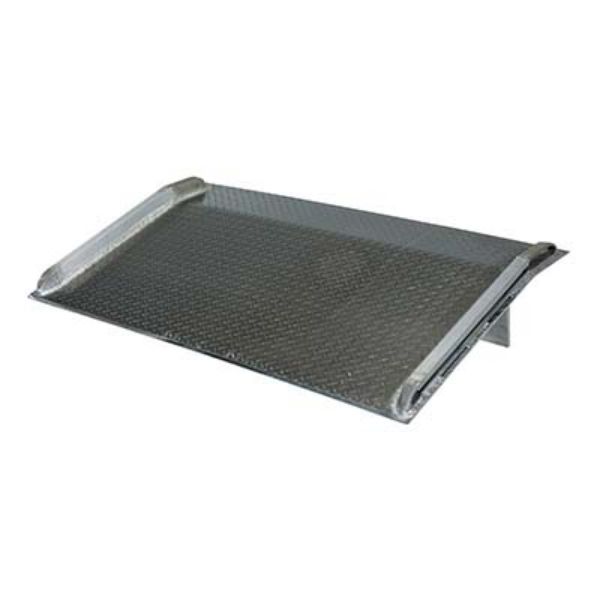

Aluminum Truck Dock Board, 5K Capacity, 78 In Wide x 30 In Long

Aluminum Truck Dock Board, 5K Capacity, 78 In Wide x 30 In Long Details

The Aluminum Truck Dock Board, 5K Capacity, 78 In Wide x 30 In Long is engineered with strong welded aluminum curbs that prevent flexing, offering unmatched durability compared to bolt-on designs. This 78-inch wide, 30-inch long dockboard supports a 5,000-lb capacity, featuring smooth, tapered curbs extending its full length for easy gripping and reduced wear, with flush edges to minimize burring. Its all-welded aluminum construction ensures lightweight, long-term, trouble-free service, reacting as a single unit under load for superior stability versus bolted steel curbs that stress fasteners individually. Beveled edges allow smooth entry and exit, while the special non-slip diamond tread surface provides positive traction. Equipped with 9" lips and welded legs 12" from the beveled edge, it minimizes movement during loading and unloading and cants for easy fork truck pickup with uneven legs. The 11° bend is 9" from the edge, and side curbs reduce usable width by 5 to 5-1/2". Manufactured to comply with OSHA standards, this dockboard is ideal for pallet truck applications requiring lighter boards.

Capacity Note: Rated for 5,000 lbs based on the heaviest equipment weight plus maximum load, multiplied by the single axle rating, considering dynamic loading, driver tendencies, speed, and usage frequency. For frequent three-shift use, Steel TS-series dockboards are recommended.
