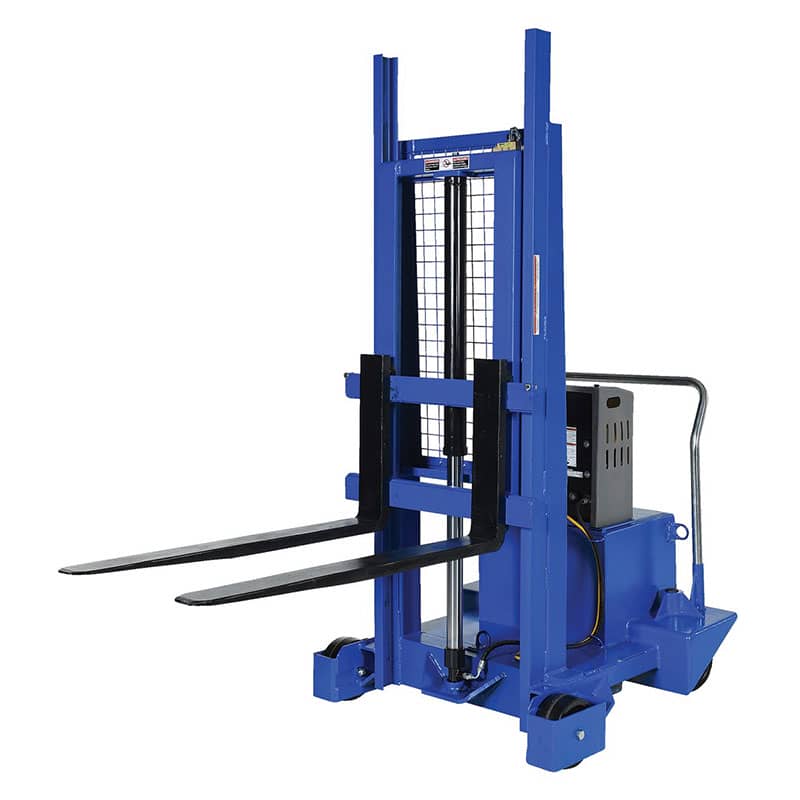

Counter-Balanced Pallet Master Servers

Counter balanced Pallet Master Servers Forks measure 4" wide by 36" long. Features an 18" horizontal load center and adjustable forks from 8" to 27". Units roll easily on 8" x 3" swivel phenolic rear casters. Floor lock standard. Handle height is 41-1/16."

Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to costly fork trucks, the CM-PMPS-PTDS-E includes combination throttle / direction and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three ways to power them:

• Suffix-AC is 115V, 1 Phase power with a push-button hand control.
• Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charge indicator gauge.
• Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control.

Counter-Balanced Pallet Master/Servers
Model	Uniform Capacity (lbs)	Operation	Service Range	Overall Height (Raised/Lowered)	Wt. (lbs)
CB-PMPS-6-50-DC	600	12V DC	3" to 50"	91" to 73-1/2"	2434
CB-PMPS-6-50-AC	600	115V AC	3" to 50"	91" to 73-1/2"	2430
CB-PMPS-10-50-DC	1,000	12V DC	3" to 50"	91" to 73-1/2"	2830
CB-PMPS-10-50-AC	1,000	115V AC	3" to 50"	91" to 73-1/2"	2616
CB-PMPS-6-60-DC	600	12V DC	3" to 60"	106" to 83-1/2"	2492
CB-PMPS-6-60-AC	600	115V AC	3" to 60"	106" to 83-1/2"	2388
CB-PMPS-10-60-DC	1,000	12V DC	3" to 60"	106" to 83-1/2"	2880
CB-PMPS-10-60-AC	1,000	115V AC	3" to 60"	106" to 83-1/2"	2880
CB-PMPS-6-50-AIR	600	Reciprocating Air	3" to 50"	91" to 73-1/2"	2345
CB-PMPS-10-50-AIR	1,000	Reciprocating Air	3" to 50"	91" to 73-1/2"	2830
CB-PMPS-6-60-AIR	600	Reciprocating Air	3" to 60"	106" to 83-1/2"	2389
CB-PMPS-10-60-AIR	1,000	Reciprocating Air	3" to 60"	106" to 83-1/2"	2782

Options
Model	Description					Wt (lbs.)
CB-PMPS-PTDS-E	Powered Traction Drive System					389

Go to Options for Stackers
