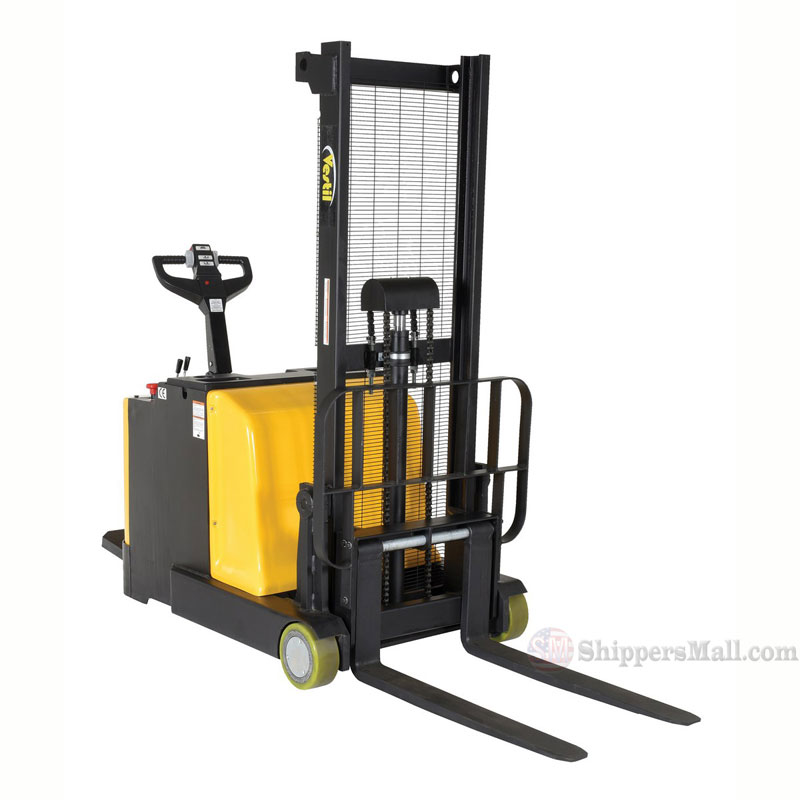

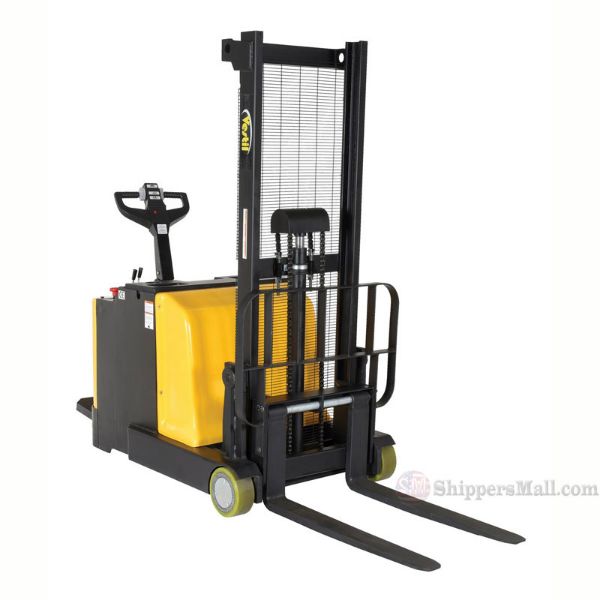

Counter-Balanced Powered Drive Lifts / Forks Raise 62" / 2000 lb. Capacity

Counter balance power lifts design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3?" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Optional Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

Counter-Balanced Powered Drive Lift
Model	Fork Size (WxL)	Lowered Height	Raised Height	Capacity 0"-62" Raised Ht.	Capacity 62"-118" Raised Ht.	Wt. (lbs)
S-2CB-62*	8-3/8 to 23-1/4"x36-1/4"	2"	62"	2,000 lbs.	--	2589

Model	Description			Capacity	Wt (lbs.)
S-CB-42-FK	Optional 42" Long Forks (only for model S-CB-62 or 118)			500 lbs.	205
S-2CB-42-FK	Optional 42" Long Forks (only for model S-2CB-62 or 118)			600 lbs.	205
AGM-UPG-4-6V	AGM Battery Upgrade (4x6V) w/ purchase w/ new unit			-	67
AGM-UPG-2-12V	AGM Battery Upgrade (2x12V) w/ purchase of above units			-	80

Go to Options for Stackers
