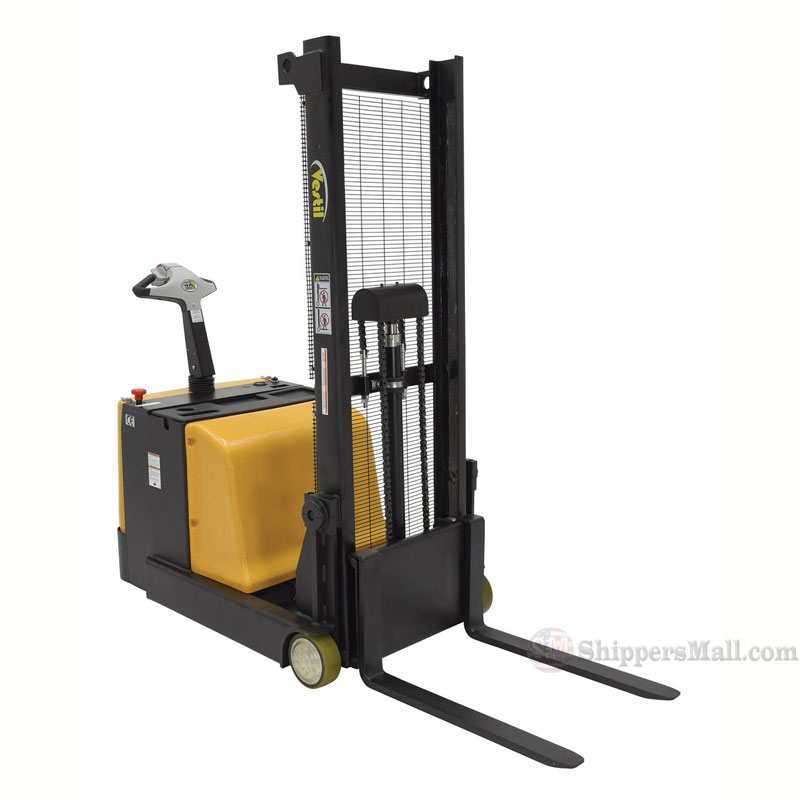

    Stacker Counter Balance / Pwr Lift,. 62"H

    Manufacturer: Vestil Mfg
    Counter-Balanced Powered Drive Lifts - Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. Forks raise up to 62" High

    Scroll Down

    SKU: S-CB-62
    Manufacturer part number: S-CB-62
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    6+
    10+
    Price
    $10,168.98
    $9,851.20
    $9,552.68
    $9,271.72
    $10,507.95
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Shipping:: Usually Ships within 5-7 Days

    Counter-Balanced Powered Drive Lifts / Forks Raise 62"

    Counter balance power lifts design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift has four 6V batteries (except S-CB-62 & S-CB-118, which uses two 12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual forks are 3?" wide on series S-CB and 4" on series S-2CB. Overall size is 32."W x 78"L on series S-CB and 35."W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

    Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Optional Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

    Counter-Balanced Powered Drive Lift
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Capacity
    0"-62"
    Raised Ht.
    Capacity
    62"-118"
    Raised Ht.
    Wt.
    (lbs)
    S-CB-626-3/8 to 23-5/8"x30"2"62"1,000 lbs.--1817

    ModelDescriptionCapacityWt (lbs.)
    S-CB-42-FKOptional 42" Long Forks (only for model S-CB-62 or 118)500 lbs.205
    S-2CB-42-FKOptional 42" Long Forks (only for model S-2CB-62 or 118)600 lbs.205
    AGM-UPG-4-6VAGM Battery Upgrade (4x6V) w/ purchase w/ new unit-67
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) w/ purchase of above units-80

    Go to Survey FormGo to Options for Stackers

    This item is too large for UPS Shipping.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    Fork TypeAdjustable Forks
    TypeFull Power
    Power TypeDC - DC 12V battery
