Dock Seal/Shelter Combination

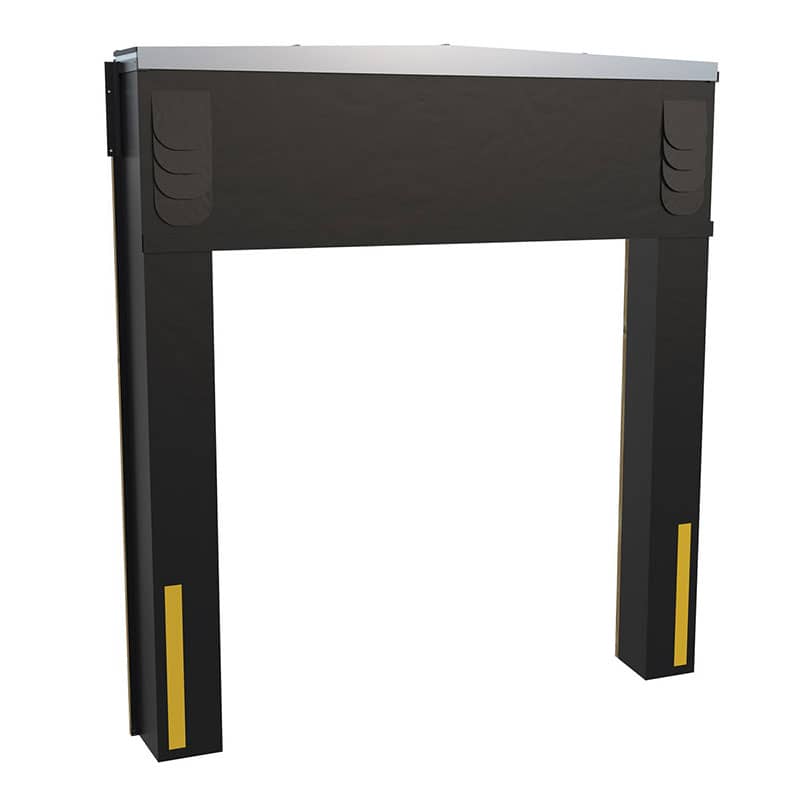

The dock seal and shelter combination standard use is for a 96" wide X 120 inch high door. The top header is made of pressure-treated with CCA preservative wolmanized lumber to provide structural protection from termites and fungal decay. Dock shelter sealer is built with a slope to allow water run off. The top header measures 114 inches wide witha 30 inch drop curtain. Side vertical measure 120 inches tall and contain high density foam mounted to the treated lumber. The vertials are mounted on wooden treated boards. The faco of the vertial sides are 12 inches wide and tapers to a 9-1/2" on the wall, allowing wall mounting down the length of the vertical sides. Application with flush dock to building in conjunction with a Edge-O-Dock use a 20 inch projection dock seal.

Before choosing options for your loading dock shelter or loading dock seals, it is best to fill out the survey form below. *Units are non-returnable

Loading Dock Seals & Shelters Survey Form

Dock Seal/Shelter Combination
Model Number	Projection	Overall Height	Overall Width	Door Opening	Wt. lbs.
D-150/650-10	10"	126"	114"	8' X 10'	192
D-150/650-11	11"	126"	114"	8' X 10'	254
D-150/650-12	12"	126"	114"	8' X 10'	206
D-150/650-13	13"	126"	114"	8' X 10'	301
D-150/650-14	14"	126"	114"	8' X 10'	211
D-150/650-15	15"	126"	114"	8' X 10'	265
D-150/650-16	16"	126"	114"	8' X 10'	217
D-150/650-17	17"	126"	114"	8' X 10'	230
D-150/650-18	18"	126"	114"	8' X 10'	218
D-150/650-19	19"	126"	114"	8' X 10'	221
D-150/650-20	20"	126"	114"	8' X 10'	223

Dock Seals & Shelter Options
Model	Description
D-FHPFS	Full height pleats, full height guide stripes
D-FHPS	Full height pleats, standard guide (24" high)
D-AP	Armor pleats, top 24" only
D-54OZ	54 ounce material - face only (standard is 36 oz.)
D-18H	1818" header
D-SV	Sloped verticals
D-BBF	Bottom Bun
D-BBFB	Bottom bun with bumpers
D-GS	Full height guide stripes
D-12F	12" flap
D-KIT	Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
D-750-RK	Six piece white vinyl patch kit (Dock Shelters - D-750 only)
