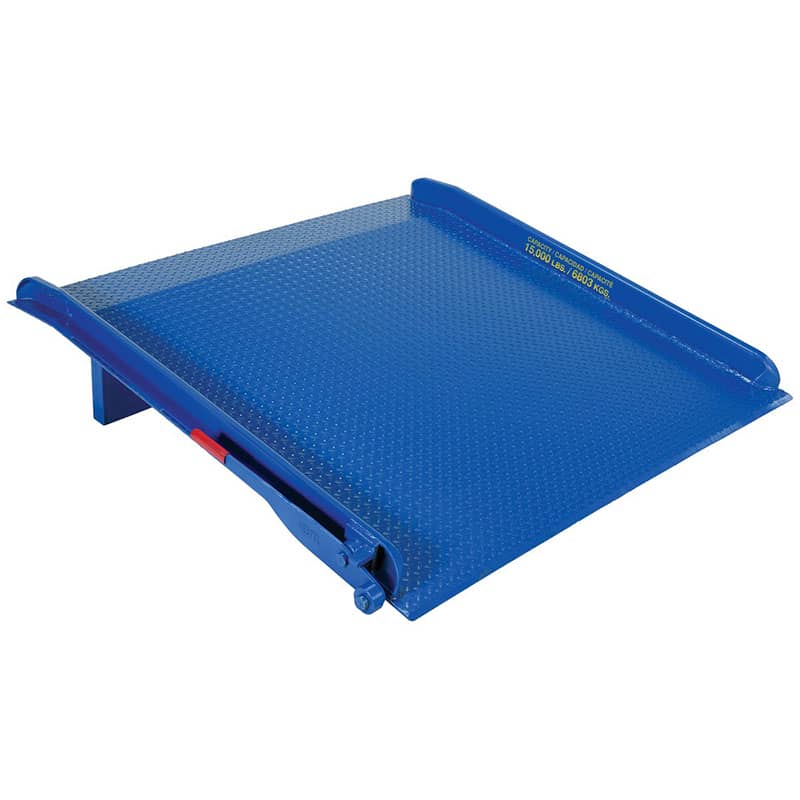

Steel Truck Dock Board 25,000 lb. Cap. & 60" Wide

Steel Truck Dockboards 60 inches wide with a 25,000 lb. Capacity

(Scroll Down to Choose Your Length)

The Steel Truck Dockboard is constructed of high strength (55,000 psi) steel for life. Beveled edges on both ends permit smooth entry and exit. The deck is diamond plated for safe, efficient use. Welded safety curbs provide maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9 inches from the beveled edge. Standard with Lever Lift for quick portability with a fork truck. Manufactured in compliance with OSHA. Optional accessories include lifting chains, span locks, span pins/holes, and removable pickup loops.

• Span pins and holes act as an extra set of legs in case the gap between the dock and the truck is wide enough that the plate may slide. These help keep it stationary in wider gaps to prevent it from falling off the dock/truck to the ground below.
• The Sliding span locks are adjustable legs that can be positioned as needed.
• The removable pick-up loop option consists of two pieces of rectangular tube with a T welded to the bottom of each. The board has two slots cut at 24” centers. To use the lifting loops, insert the T parallel into the slot, turn 90° so that the T is perpendicular with the slot, then lift with a fork truck.
• The handles are two handles welded to one side so the board can be lifted high enough to get the forklift under it for pickup.
