    3820SDSPCG - Special Sliding Web Winch With Disc, Galv

    Special Sliding Web Winch With Disc, Galv

    KN-3820SDSPCG
    Sliding winches will move easily in both directions to position on the track and then lock into place when tension is applied to the webbing. Sliding winches must be used with Kinedyne winch track (Part Numbers 3606 and 3607). All sliding winches can also be welded in place for fixed application.

    Specifications: A: 7.75" B: 4.88" C: 6.50" D: 3.94"

    Working Load Limit: 5,500 lbs./2500 kgs.


    Weight: 10.3 lbs., 4.7 kgs.

    From $75.94
    3820SPC - Special Sliding Web Winch, E-Coated

    Special Sliding Web Winch, E-Coated

    KN-3820SPC
    Sliding winches will move easily in both directions to position on the track and then lock into place when tension is applied to the webbing. Sliding winches must be used with Kinedyne winch track (Part Numbers 3606 and 3607). All sliding winches can also be welded in place for fixed application.

    Specifications: A: 7.66" B: 4.88" C: 6.50" D: 4.00"

    Working Load Limit: 5,500 lbs./2500 kgs.


    Weight: 9.7lbs., 4.4 kgs.

    From $59.56
    3820SPCG - Special Sliding Web Winch, Galvanized

    Special Sliding Web Winch, Galvanized

    KN-3820SPCG
    Sliding winches will move easily in both directions to position on the track and then lock into place when tension is applied to the webbing. Sliding winches must be used with Kinedyne winch track (Part Numbers 3606 and 3607). All sliding winches can also be welded in place for fixed application.

    Specifications: A: 7.75" B: 4.88" C: 6.50" D: 3.94"

    Working Load Limit: 5,500 lbs./2500 kgs.

    Weight: 10.3 lbs., 4.7 kgs.

    From $69.56

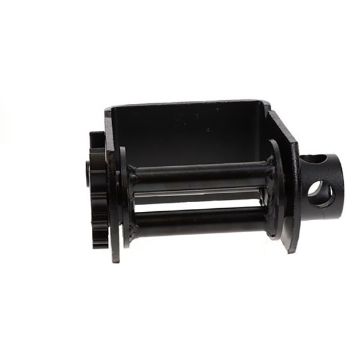

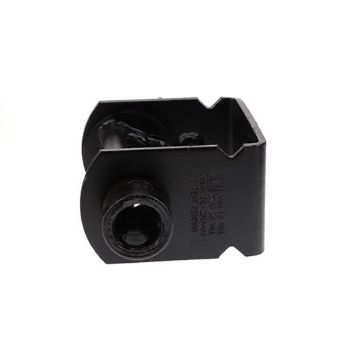

    14011G - Standard 3 Bar Sliding Web Winch, Galvanized

    Standard 3 Bar Sliding Web Winch, Galvanized

    KN-14011G
    The unique 3 bar winch reel design allows for easy strap insertion, even when strap ends are frayed or slots have ice build-up.

    Specifications: A: 10.25" B: 6.50" C: 6.89" D: 3.94"

    Working Load Limit: 5,000 lbs./2270 kgs.


    Weight: 15.4 lbs., 7.0 kgs.

    From $119.36
    14011NP - Standard 3 Bar Sliding Web Winch, No Paint

    Standard 3 Bar Sliding Web Winch, No Paint

    KN-14011NP
    The unique 3 bar winch reel design allows for easy strap insertion, even when strap ends are frayed or slots have ice build-up.

    Specifications: A: 10.25" B: 6.50" C: 6.89" D: 3.94"

    Working Load Limit: 5,000 lbs./2270 kgs.

    Weight:
    From $82.31
    14006 - Standard 3 Bar Weld-On Web Winch, E-Coated

    Standard 3 Bar Weld-On Web Winch, E-Coated

    KN-14006
    The unique 3 bar winch reel design allows for easy strap insertion, even when strap ends are frayed or slots have ice build-up.

    Specifications: A: 9.98" B: 6.54" C: 5.50" D: 4.00"

    Working Load Limit: 5,000 lbs./2270 kgs.

    Weight: 13.4 lbs., 6.0 kgs.

    From $72.86
    14006NP - Standard 3 Bar Weld-On Web Winch, No Paint

    Standard 3 Bar Weld-On Web Winch, No Paint

    KN-14006NP
    The unique 3 bar winch reel design allows for easy strap insertion, even when strap ends are frayed or slots have ice build-up.

    Specifications: A: 9.98" B: 6.54" C: 5.50" D: 4.00"

    Working Load Limit: 5,000 lbs./2270 kgs.


    Weight: 13.4 lbs., 6.0 kgs.

    From $76.40
    1820P2 - Standard Portable Web Winch, E-Coated

    Standard Portable Web Winch, E-Coated

    KN-1820P2
    Portable winches allow flexibility of winch placement along the trailer side channel.

    Specifications: A: 7.75" B: 4.88" C: 5.50" D: 3.50"

    Working Load Limit: 5,500 lbs./2500 kgs.

    Weight: 9.2 lbs., 4.2 kgs.

    From $38.43
    2820 - Standard Sliding Web Winch With Large Cap

    Standard Sliding Web Winch With Large Cap

    KN-2820
    Sliding winches will move easily in both directions to position on the track and then lock into place when tension is applied to the webbing. Sliding winches must be used with Kinedyne winch track (part numbers 3606,3606-12 and 3607).Weight:
    From $67.56
    3820 - Standard Sliding Web Winch, E-Coated

    Standard Sliding Web Winch, E-Coated

    KN-3820
    Sliding winches will move easily in both directions to position on the track and then lock into place when tension is applied to the webbing. Sliding winches must be used with Kinedyne winch track (Part Numbers 3606 and 3607). All sliding winches can also be welded in place for fixed application.

    Specifications: A: 7.66" B: 4.88" C: 5.98" D: 3.94"

    Working Load Limit: 5,500 lbs./2500 kgs.

    Weight: 9.2 lbs., 4.2 kgs.

    From $35.41
    1020zp - Standard Sliding Web Winch, Zinc Plated

    Standard Sliding Web Winch, Zinc Plated

    KN-1020ZP
    The winch moves easily in both directions, but locks firmly in place when tension is applied. U.S. Patent Number 5,853,164

    Specifications: A: 7.71" B: 4.88" C: 5.87" D: 3.94"

    Working Load Limit: 5,000 lbs./2270 kgs.

    Weight: 8.8 lbs., 4.0 kgs.

    From $48.67
    1820 - Standard Weld-On Winch, E-Coated

    Standard Weld-On Winch, E-Coated

    KN-1820

    Weld-on winches are designed to be permanently mounted in a fixed position.

    Specifications: A: 7.66" B: 4.88" C: 5.51" D: 3.54"

    Working Load Limit: 5,500 lbs./2500 kgs.

    Weight: 8.0 lbs., 3.6 kgs.

    From $34.14
