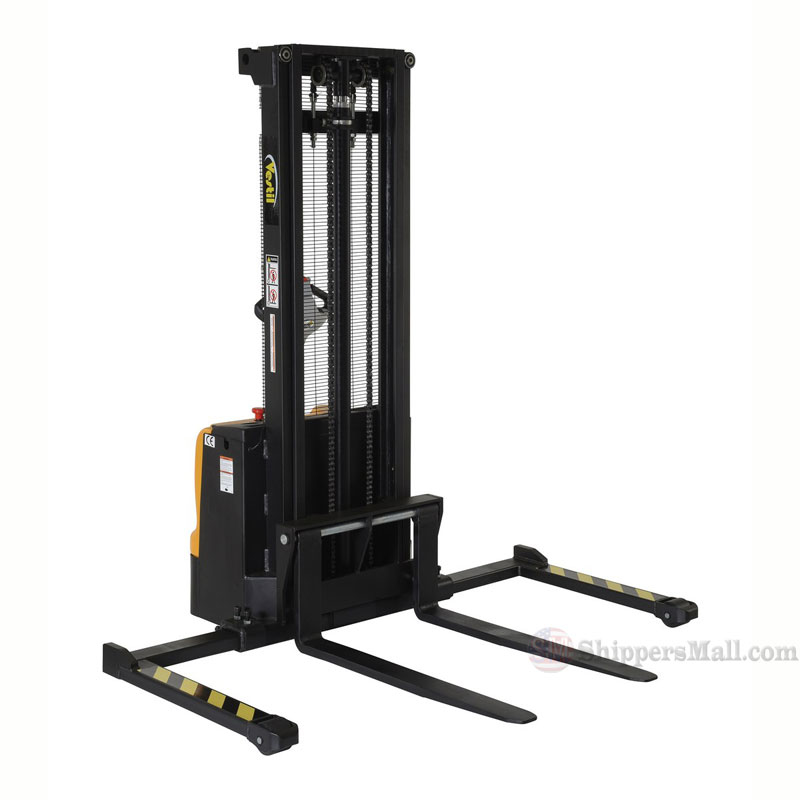

Double Mast Fully Powered Electric Stacker up to 125" High
Double mast full powered electric stacker transports loads quickly and effortlessly. The high torque 24Volt DC drive and lift motor can do heavy-duty jobs. The ergonomic handle has a easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
| Double Mast Stacker with Powered Drive and Powered Lift |
| Model | Fork Size
(WxL) | Lowered
Height | Raised
Height | Uniform
Capacity
0"-62" RH | Uniform
Capacity
62"-118" RH | Uniform
Capacity
118"-150" RH | Wt.
(lbs) |
Adjustable Forks / Adjustable Support Legs (works with pallets & skids) |
| S-125-AA-DM | 8.3"to26-3/4"x42" | 2-1/8" | 125" | 2,200 lbs. | 1,500 lbs. | 1,500 lbs. | 1444 |
| S-150-AA-DM | 8.3"to26-3/4"x42" | 2-1/8" | 150" | 2,200 lbs. | 1,500 lbs. | 1,000 lbs. | 1550 |
Options |
| Model | Description | Wt (lbs.) |
| S3-SDG-RF | Single Drum Gripper Attachment | 62 |
| AGM-UPG-2-12V | AGM Battery Upgrade (2x12V) must be purchased with new unit | 50 |
