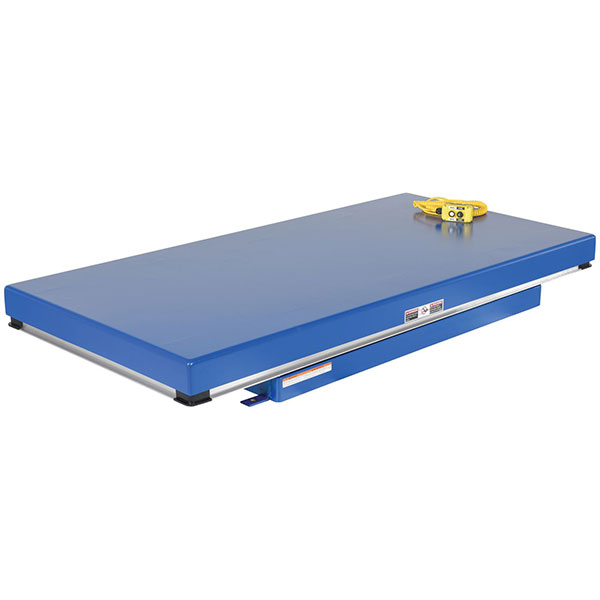

Electric Hydraulic Scissor Lift Tables
Electric hydraulic scissor lift tables are essential in various manufacturing and warehouse environments. These lift tables are designed with multiple safety features, including an electric toe guard to protect pinch points during the lowering process, and an internal safety velocity fuse that maintains platform height in the event of hose or fitting failure. Additional features include a 24V AC push-button hand control, a maintenance prop, and an upper travel limit switch that halts the table at maximum height. The unit is equipped with a 2HP, 460V, 3-phase, 60 Hz totally enclosed motor as standard, with other voltage options available. The hydraulic components have a rating of 3000 psi, ensuring robust performance.
- Electric toe guard for safety during table lowering
- Internal safety velocity fuse to maintain platform height
- 24V AC push button hand control for easy operation
- Maintenance prop for added safety during servicing
- Upper travel limit switch to stop table at maximum height
- 2HP, 460V, 3-phase, 60 Hz totally enclosed motor standard (other voltages available)
- 3000 psi hydraulic component rating
