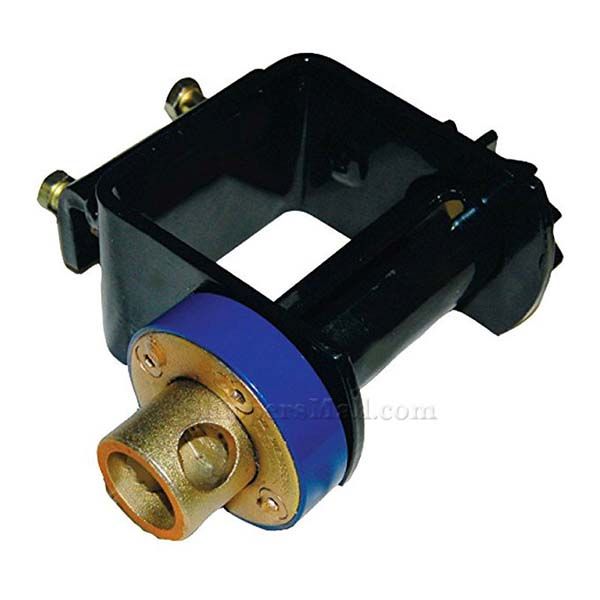

Ratchet Winch, Storable Ratcheting Web Winch for L Track

Features

Storable ratcheting double L track 7-mm. sliding winch features an efficient ratchet design, sliding versatility, lighter weight, and extra space behind the mandrel for storing webbing, making it a high-performance piece of tie-down equipment. Made with heat-treated steel components for added strength, including high-strength alloy pawl pins and a seamless, solid steel mandrel with smooth ground web slots to prevent abrasion, the winch has plenty of strength for securing heavy-duty loads. A 7-mm. design helps to improve fuel economy and/or allow for greater payloads thanks to an average weight reduction of 2 lbs. per winch, while the ratcheting design can save you up to 33% time on tensioning and reduce the risk the winch bar rollover.

The ratcheting double L track 7-mm. sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, ratcheting system, and storable design, the sliding web winch makes for an efficient and convenient solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 8.3
Weight (kgs) 3.8
Overall Width (inches) 8
Inside Frame Width (inches) 4.6
Frame Height (inches) 6.5
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
EPDM false
Finish Powder Coat
Material Steel

Part number 49207-127-RW
