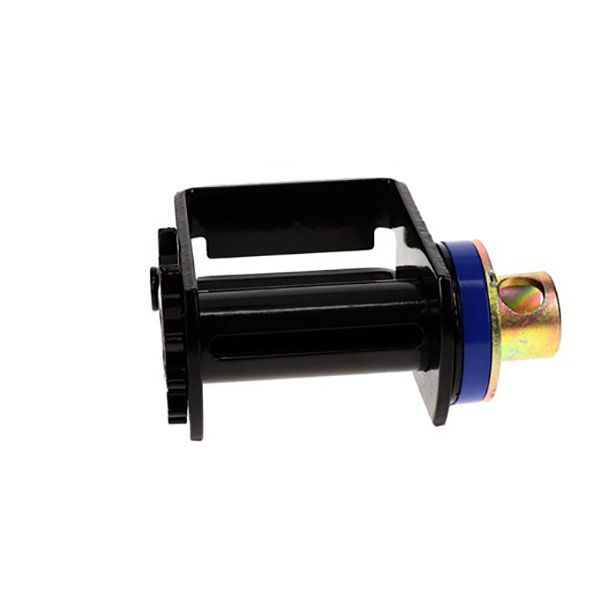

Ratchet Winch, Standard Double L Sliding 7MM Web Winch

Features

Fast ratchet system and tough 7-mm. design, the ratcheting double L track 7-mm. sliding web winch is lightweight with heat-treated steel strength. With high-strength alloy pawl pins and a seamless, solid steel mandrel, the sliding winch provides plenty of strength for securing heavy-duty cargo, while smooth ground web slots help protect your webbing from wear and save you money on replacement straps. The 7-mm. design helps to reduce the average weight per winch by 2 lbs. to allow for improved fuel economy and/or greater payloads, and heat-treated materials maintain the winch’s strength despite the lighter weight. To help reduce tensioning time by up to 33% and minimize the risk of winch bar rollover, the web winch features a ratcheting system that makes it quick and easy to use.

The ratcheting double L track 7-mm. sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with Ancra L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, ratcheting system, and 7-mm. design, the sliding web winch makes for an efficient and sturdy solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 8
Weight (kgs) 3.6
Overall Width (inches) 8
Inside Frame Width (inches) 4.6
Frame Height (inches) 6
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
Finish Powder Coat
Material Steel

Part Number: 49207-127-RW
