    Fork Truck Drum Carrier / Rotator 800 Lb Capacity - DCR-205-8

    Manufacturer: Vestil Mfg
    The forklift drum carrier & rotator allows you to easily transport and rotate 55 gallon steel drums using a fork truck.
    Comes in 3 styles
    SKU: SM-VS-DCR-205-8
    Manufacturer part number: DCR-205-8
    PRICE BREAKS - The more you buy, the more you save
    Old price: $945.64
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Shipping:: Usually ships in within 2-3 days

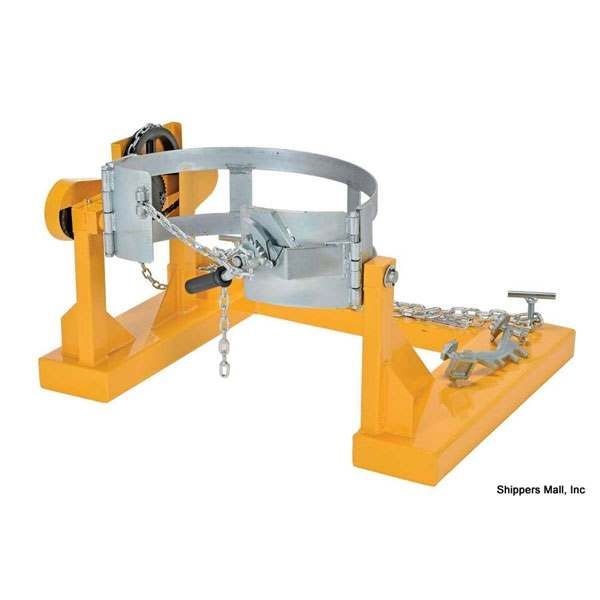

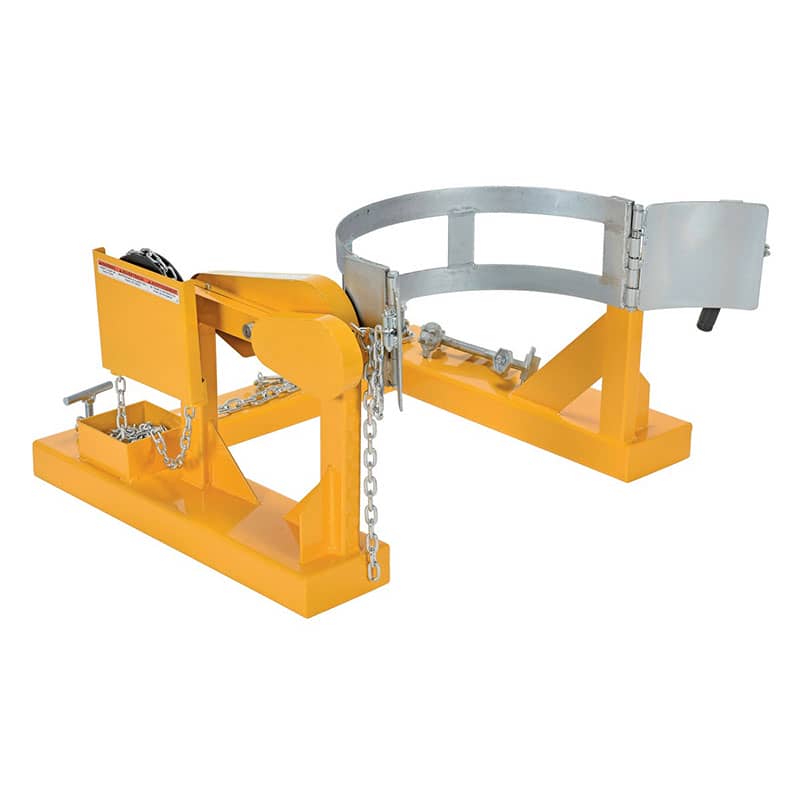

    Fork Truck Drum Carrier / Rotator 800 lb. Capacity

    Each unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360° from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I, is also included for opening and closing drums.

    Fork Mounted Drum Carrier/Rotator

    15 Foot Pull Chain Rotation

    Model Drum Restraint Method Acceptable Drum Styles Capacity (lbs) Crank Turns Per 90 º Rotation Wt. (lbs)
    DCR-205-8 33" Chain 55 Gallon Steel 800 10 228


    Video: How to operate

    Model Number Is DCR-205-8
    Overall Width Is 38 3/4"
    Overall Length Is 38 5/8"
    Overall Height Is 25 15/16"
    Fits 1- 55 Gallon Drum
    Max Capacity Is 800 Lbs.
    Fork Truck Restraint Chain Length Is 56"
    15' Rotation Pull Chain (Not Shown)
    Fork Pocket Center-To-Center Is 31 3/8" Fc
    Usable Fork Pocket Size Is 7" X 2 5/8"
    Bung Wrench Included (Not Shown)
    Lost Load Is 151 Lbs. (Approx)
    Effective Thickness Is Fork Length Minus 29 3/4"

    Products specifications
    Model DCR-205-8
    Capacity (pounds) 800
