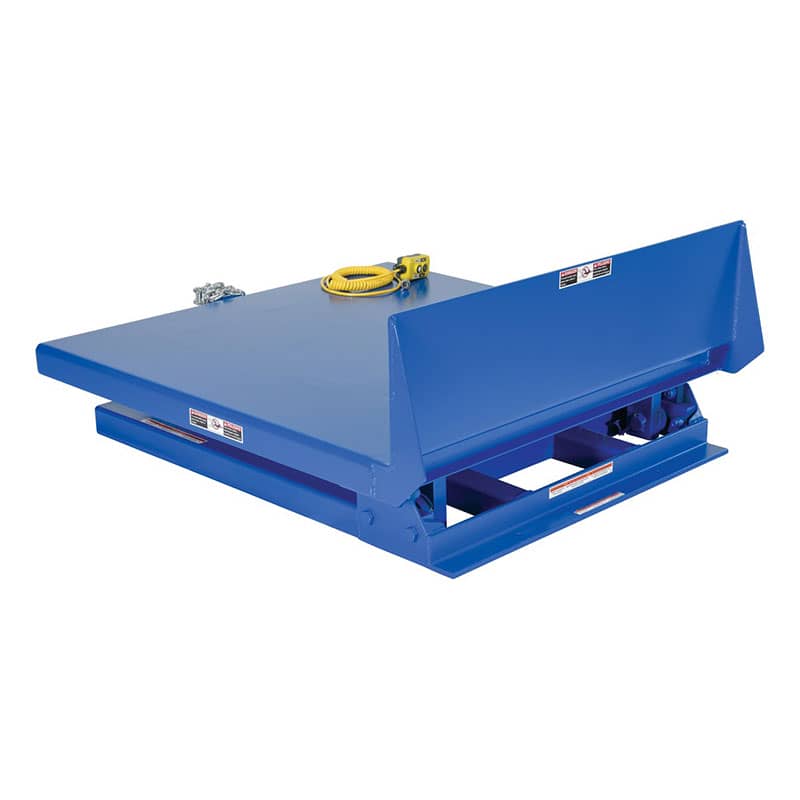

Hinge & Sliding Tilt Tables
Hinge Tilt Model: EHTT
The hinge tilt table offers the rugged durability of the standard efficiency master line of tilters, with the added benefit of extra platform height. The table's lip design allows for loading and unloading on three sides, making it highly versatile. Control is achieved with a two-button handheld pendant, and various voltage options are available to suit different needs. The pressure plated pump is paired with a specialized manifold that includes counterbalanced valves and modulated flow control, ensuring maximum efficiency.
- Rugged durability with extra platform height
- Three-sided loading and unloading
- Two-button handheld pendant control
- Counterbalanced valves and modulated flow control for efficiency
Sliding Tilt Model: EHTT-L
The sliding tilt table combines the rugged durability of the master line of tilters with extra platform height and a patented sliding link-tilt design. This design offers maximum stability while occupying minimal space. As the table tilts, the front edge of the container moves away from the operator, enhancing safety and usability. When ordering an optional accordion skirt, side gussets are required.
- Rugged durability with extra platform height
- Patented sliding link-tilt design for maximum stability
- Front edge moves away from the operator for safety
- Side gussets required for optional accordion skirt
EHTT: Stationary with four (4) lag down points.
EHTT-L: Base includes 7-1/2" W x 2-1/2" H usable fork pockets on 28" centers for portability.
- Offers rugged durability of the standard master line plus extra platform height
- Features counterbalanced valves and modulated flow control for maximum efficiency
- Patented sliding link-tilt design for maximum stability while occupying minimum space
- Center-of-gravity of load remains closer to the center of the frame
