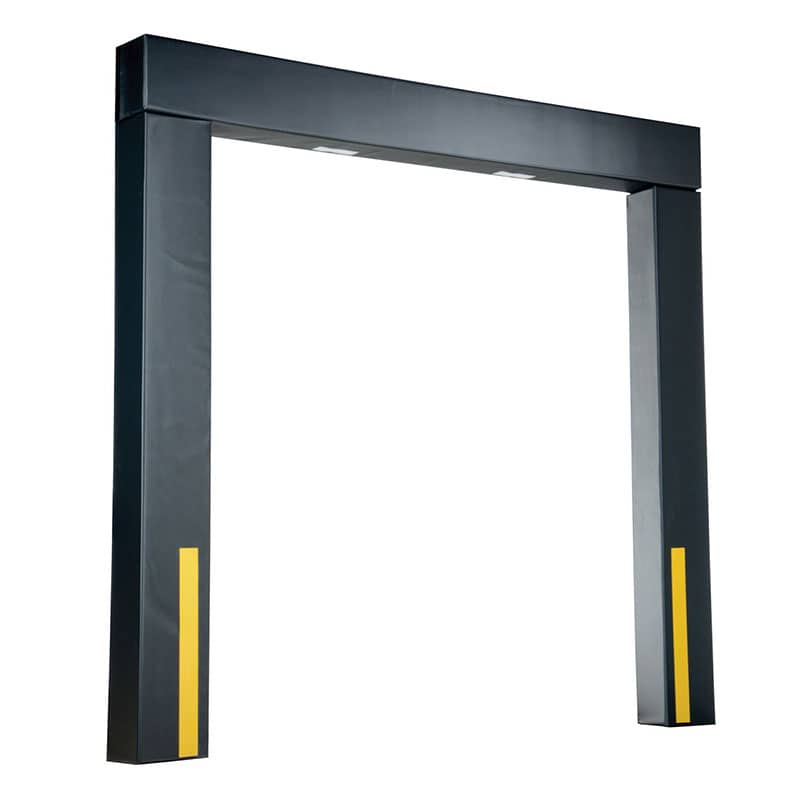

Truck Dock Seals for 8X8 ft. Dock Doors

Dock seals feature a high quality nylon reinforced 36 oz. vinyl facing and have a stronger tear resistant streangh than equel weight hypalon door seals. The ends are chemically treated preventing moisture from infiltrating. Door seals are mounted on a durable wolmanized wood and has a full height air escape tunnel for when the trucks back up to the dock. These door seals consist of 3 piece construction. *The wall installation kits are included. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal.

Before choosing options for your loading dock shelter or loading dock seals, it is best to fill out the survey form below. *Units are non-returnable

Loading Dock Seals & Shelters Survey Form

Specification / Features

• Installation kits included.
• Nylon Reinforced Vinyl (oz.) - 36
• Nylon Reinforced Guide Strips (in.) - 2
• Top Height (in.) - 12
• Side Wall Width (in.) - 9-1/2
• Face Width (in.) -12
• Maximum Compression (in.) - 5
• Standard Guide Stipe Height (in.) - 30
• Side Height (in.) - 96
• Max Door Width (in.) - 96
• Max Door Height (in.) - 96

Dock Seals (for 8' wide x 8' high doors)
Model Number	Projection	Overall Height	Overall Width	Door Openings	Wt. lbs.
D-150-10	10"	108"	120"	8' X 8'	212
D-150-11	11"	108"	120"	8' X 8'	214
D-150-12	12"	108"	120"	8' X 8'	216
D-150-13	13"	108"	120"	8' X 8'	218
D-150-14	14"	108"	120"	8' X 8'	219
D-150-15	15"	108"	120"	8' X 8'	220
D-150-16	16"	108"	120"	8' X 8'	221
D-150-17	17"	108"	120"	8' X 8'	222
D-150-18	18"	108"	120"	8' X 8'	249
D-150-19	19"	108"	120"	8' X 8'	251
D-150-20	20"	108"	120"	8' X 8'	252

Dock Seals & Shelter Options
Model Number	Description
D-FHPFS	Full height pleats, full height guide stripes
D-FHPS	Full height pleats, standard guide (24" high)
D-AP	Armor pleats, top 24" only
D-54OZ	54 ounce material (standard thickness is 36 oz.)
D-18H	18" header (Standard Header has a 12" header)
D-SV	Sloped verticals
D-BBF	Bottom Bun for specific needs inbetween the dock bumpers.
D-BBFB	Bottom bun with bumpers
D-GS	Full height guide stripes (standard yellow guide strips are 24")
D-12F	12" flap
D-SIDE	Dock seal sides between 97" and 120"
D-KIT	Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
