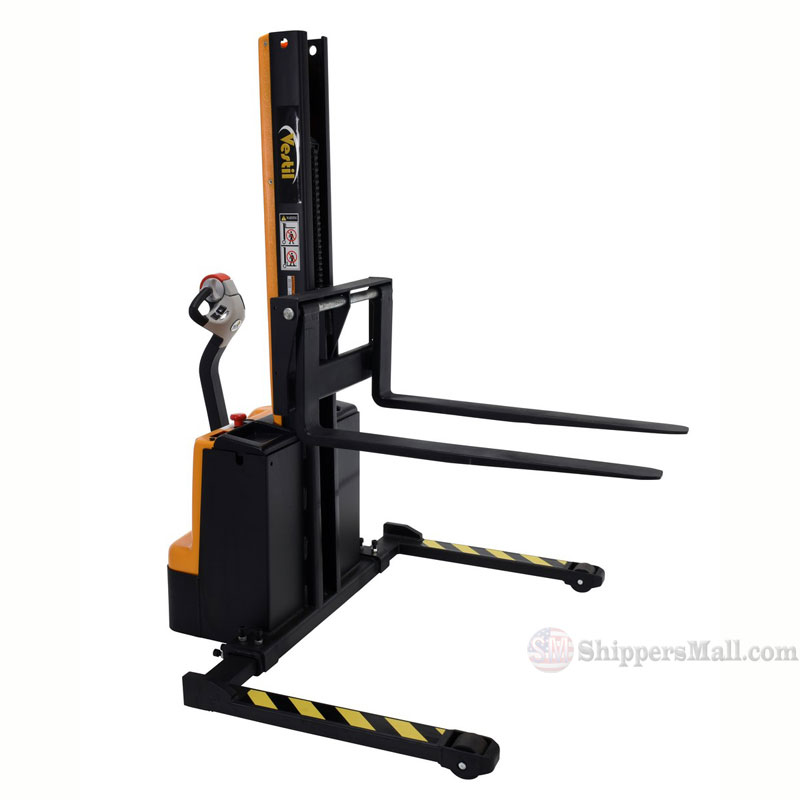

Narrow Mast Stacker, Pwr. Lift & Drive 62"H, 1.5K

Manufacturer: Vestil Mfg
Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) - Raised Height: 62" and 1500 lb. Capacity

Scroll Down

SKU: SM-VS-SNM15-62-AA
Manufacturer part number: SNM15-62-AA
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$7,993.47
$7,946.45
$7,899.98
$7,854.05
Old price: $8,496.20
$8,089.20
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Shipping:: Usually Ships within 5-7 Days

Narrow Mast Stacker with Powered Drive

Powered Lift / Adjustable Forks / Adjustable Support Legs / Forks Raise 62" High. /1500 lb. Capacity

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

Narrow Mast Stacker with Powered Drive and Powered Lift
Adjustable Forks / Adjustable Support Legs (works with pallets & skids)
ModelFork Size
(WxL)
Lowered
Height
Raised
Height
Uniform
Capacity
0"-62" RH
Uniform
Capacity
62"-118" RH
Wt.
(lbs)
SNM15-62-AA*8.3"to26-3/4"x42"2-1/8"62"1,500 lbs.--1068

Available Options

ModelDescriptionWt (lbs.)
AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
SL-DKSolid Platform46


Go to Survey FormGo to Options for Stackers

This item may be too large for UPS Shipping. Is your order over 70 pounds? Or maybe too long or large? Then we will quote shipping cost to get the best LTL Shipping Rates.

We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

  • We need FULL ship to address.
  • Quantity of the item purchasing.
  • After you receive your quote, you add the shipping cost to your order by using the link below.
  • Keep in mind, we do allow "Collect Shipping" on your carrier account. Choose collect shipping and enter in the carrier and the carrier acct # during the checkout process.

Our goal is always to get the cheapest shipping cost available.

 CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

Products specifications
Fork TypeAdjustable Forks
TypeFull Power
Power TypeDC - DC 12V battery
Support Leg TypeAdjustable Legs
