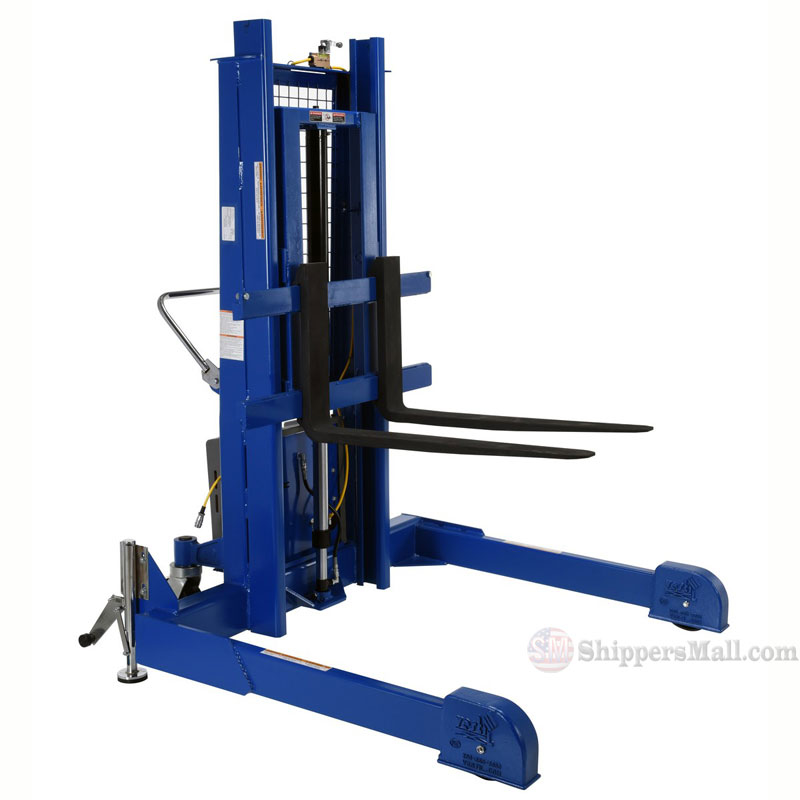

Pallet Server - 12V DC Powered / 4000 Capacity, 50"H

Pallet Master Server / Stacker - 12 Volt DC Powered, up to 50" High

Pallet Master Server Stacker can accommodate pallets and skids with or without understructure.

The Pallet Master Servers stackers are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" phenolic swivel rear casters. Floor lock standard on PMPS series. Handle height is 36".

Optional Feature:

PTDS-E - Optional Power Traction Drive will reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Pallet Server / PMPS-50-DC / 12 Volt DC Powered
Model	Capacity (lbs)	Description	Forks (WxL)	Lift Height	Wt. (lbs)
PMPS-50-DC	4,000	12V DC Powered	4"x36"	50"	1046



Options
Model	Description					Wt (lbs.)
PMPS-48FORK	48" Forks (3,200 Lb. capacity at 24" centers)					200
PMPS-PTDS-E	Powered Traction Drive System					389
PMPS-DCR	Retrofit Drum Carrier Rotator (800 lb. capacity)					239
