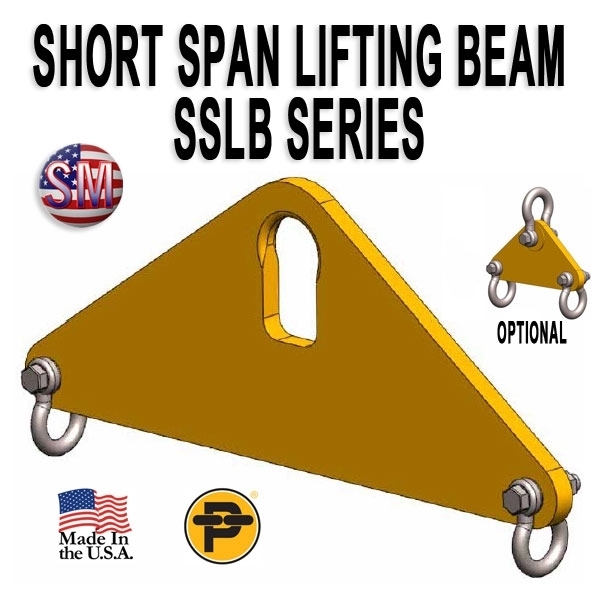

SSLB - 1/4 Ton - 2 ft. Outside Spread-SSLB - 25-2

This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 1/4 Ton - 2 ft. Outside Spread- SSLB-25-2
SKU: PL-SSLB-.25-2
Manufacturer part number: SSLB-25-2
$601.07
i h

Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-25-2

Lifting Capacity 1/4 Ton with a  2 ft. Outside Spread

Benifits:

  • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
Products specifications
Beam TypeSSLB Short Span Lifting Beam (plate style)
Capacity Tons1/4
Weight lbs.15
Outside Spread (Ft.)2
Headroom6.9
Bail Height0.63
Bail Opening Height4
Bail Opening Width2
Bail Thickness0.50
Shackle Size3/8
Shackle Clearance0.09
