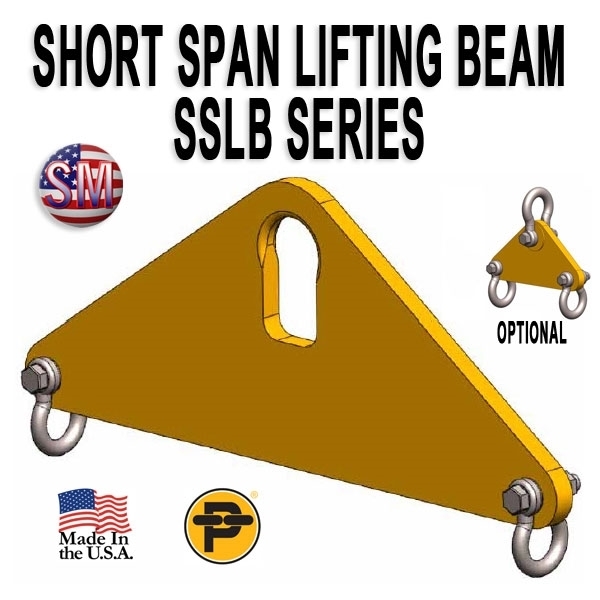

    SSLB - 1/4 Ton - 3 ft. Outside Spread - SSLB-25-3

    $489.38
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 1/4 Ton - 3 ft. Outside Spread - SSLB-25-3
    SKU: PL-SSLB-25-3
    Manufacturer part number: SSLB-25-3

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-25-3

    Lifting Capacity 1/4 Ton with a  3 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam TypeSSLB Short Span Lifting Beam (plate style)
    Capacity Tons1/4
    Weight lbs.7
    Outside Spread (Ft.)3
    Headroom6.9
    Bail Height0.63
    Bail Opening Height4
    Bail Opening Width2
    Bail Thickness0.50
    Shackle Size3/8
    Shackle Clearance0.09
