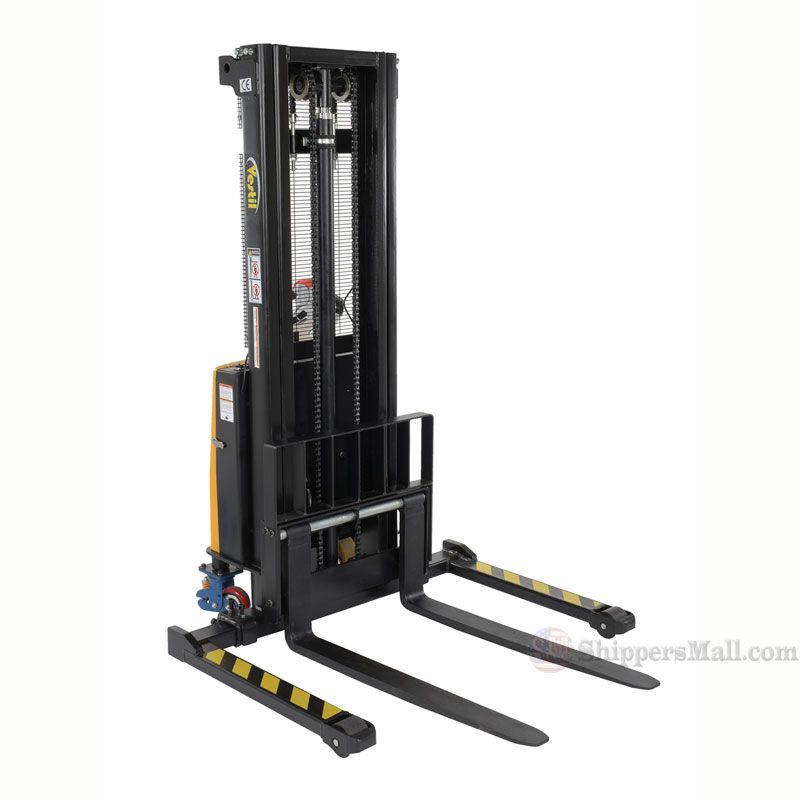

SL Series - Stacker with Powered Lift - Power Drive - Adjustable Forks/ Adjustable Support Legs
Forks Raise up to 137"
Power Traction Drive System. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.
Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made with premium quality materials. SL Series models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge.
| Stacker with Powered Lift - Adjustable Stacker W/Power lift, power traction drive |
| Model | Lowered
Height | Raised
Height | Uniform
Capacity
0"-63" RH | *Uniform
Capacity
63"-118" RH | *Uniform
Capacity
118"-137" RH | Wt.
(lbs) |
| SL-137-AA-PTDS | 2-1/8" | 137" | 2,000 lbs. | 1,500 lbs | 1,000 lbs | 1420 |
Available Options |
| Model | Description | Wt (lbs.) |
| SL-HC | Hand Control | 3 |
| SL-DK | Solid Platform | 46 |
| AGM-UPG-SL | AGM Battery Upgrade (1) 12V 100Ah Hour (must purchase with new unit) | 68 |
