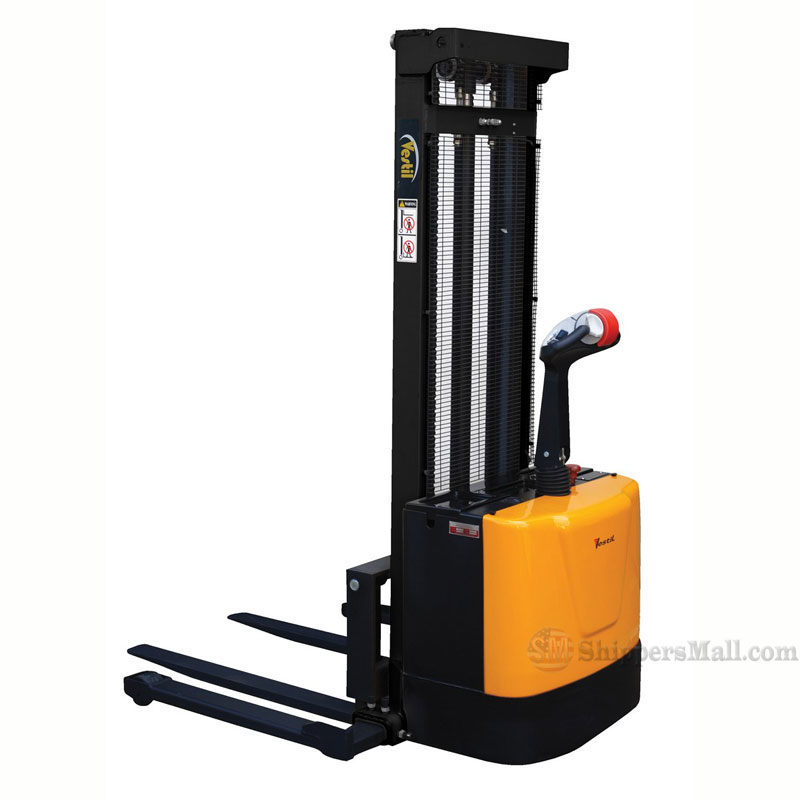

Full Powered Stacker with Power Drive and Powered Lift
Adjustable Forks / Adjustable Support Legs 2K Cap., 118" High
Full powered electric stacker transports loads throughout warehouse facilities quickly and with little effort. Features a high torque 24VDC drive and lift motor that can handle heavy-duty jobs. It has a ergonomic handle that features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes a electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
You can upgrade the battery to a absorbed Glass Matt, suffix AGM. Batteries that are maintenance free. They have a sealed construction eliminates periodic watering and corrosive acid fume spills.
| Stacker with Powered Drive and Powered Lift |
| Adjustable Forks/ Adjustable Support Legs (works with pallets & skids) |
| Model | Fork
Size (O.D.)
(WxL) | Lowered Height | Raised Height | Capacity
0"-62"
Raised
Height | Capacity
62"-118"
Raised
Height | Capacity
118"-150"
Raised
Height | Wt.
(lbs) |
| S-118-AA | 26-3/4"x42" | 2"-1/8" | 118" | 2,000 lbs. | 1,500 lbs. | - | 1522 |
Available Options |
| Model | Description | Wt (lbs.) |
| AGM-UPG-2-12V | AGM Battery (2x12V) must be purchased with new unit | 80 |
| S-DK | Optional Solid Platform | 40 |
