Full Pwr. Stacker Pwr Drive/Lift, Adj. Forks/Legs - 62", 2K Cap.

Manufacturer: Vestil Mfg
Stackers with Powered Drive and Powered Lift, Features: Adjustable Forks/ Adjustable Support Legs (works with pallets & skids) Forks raise up to 62" High with a 2,000 lb. capacity.

Scroll Down

SKU: SM-VS-S-62-AA
Manufacturer part number: S-62-AA
PRICE BREAKS - The more you buy, the more you save
Quantity
2+
4+
8+
16+
Price
$9,711.74
$9,654.61
$9,598.15
$9,542.35
Old price: $10,322.54
$9,828.05
i h
Shipping:: Usually Ships within 5-7 Days

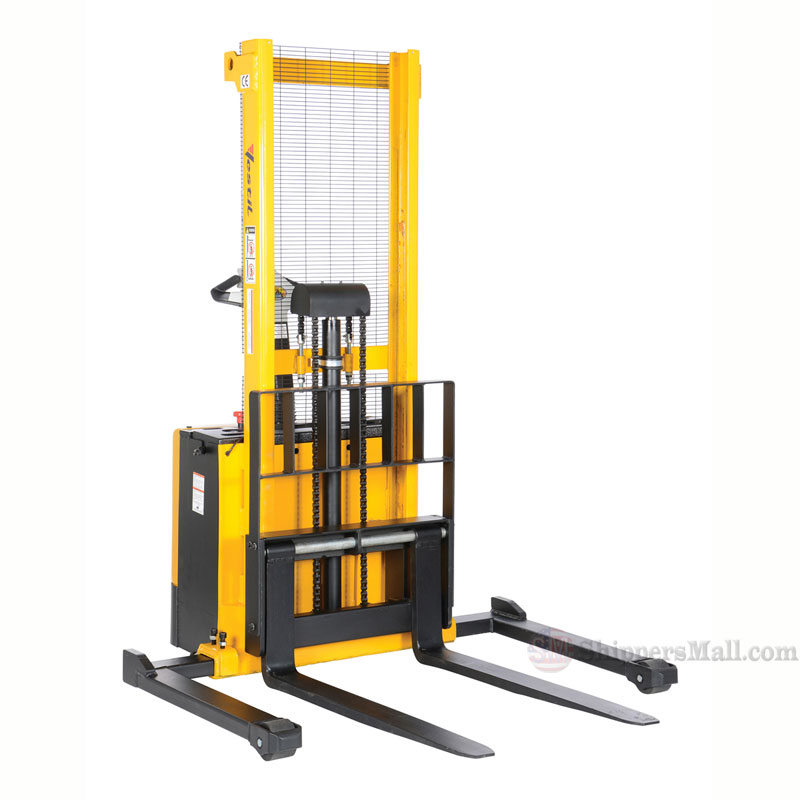

Full Powered Stacker with Power Drive and Powered Lift

Adjustable Forks / Adjustable Support Legs 2K Cap., 62" High

Full powered electric stacker transports loads throughout warehouse facilities quickly and with little effort. Features a high torque 24VDC drive and lift motor that can handle heavy-duty jobs. It has a ergonomic handle that features an easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes a electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

You can upgrade the battery to a absorbed Glass Matt, suffix AGM. Batteries that are maintenance free. They have a sealed construction eliminates periodic watering and corrosive acid fume spills.

Stacker with Powered Drive and Powered Lift
Adjustable Forks/ Adjustable Support Legs (works with pallets & skids)
ModelFork
Size (O.D.) (WxL)
Lowered HeightRaised HeightCapacityWt.
(lbs)
S-62-AA26-3/4"x42"2"-1/8"62"2,000 lbs.1474

Available Options

ModelDescriptionWt (lbs.)
AGM-UPG-2-12VAGM Battery (2x12V) must be purchased with new unit80
S-DKOptional Solid Platform40

Go to Survey FormGo to Options for Stackers

Products specifications
Fork TypeAdjustable Forks
TypeFull Power
Power TypeDC - DC 12V battery
Support Leg TypeAdjustable Legs
