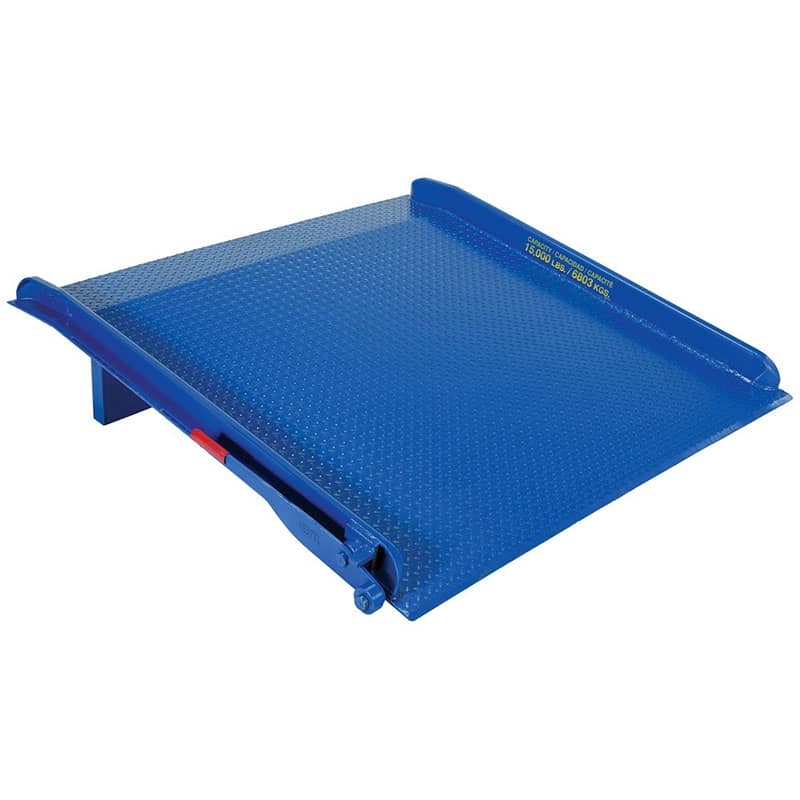

Steel Truck Dockboards 60 inches wide with a 15,000 lb. Capacity
(Scroll Down to Choose Your Length)
The Steel Truck Dockboard is constructed of high-strength (55,000 psi) steel for durability and service life. Both ends feature beveled edges for smooth entry and exit. The diamond-plated deck ensures safe and efficient use. Welded safety curbs provide maximum strength, while locking legs prevent ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are positioned 12" from the edge of the dockboard. The bend is 11 degrees and 9 inches from the beveled edge. Standard with Lever Lift for quick portability with a fork truck. Manufactured in compliance with OSHA standards. Optional accessories include lifting chains, span locks, span pins/holes, and removable pickup loops.
OPTIONS DESCRIPTION
- Span pins and holes act as an additional set of legs to prevent the dockboard from sliding, especially useful for wide gaps between the dock and the truck.
- Sliding span locks are essentially adjustable legs.
- The removable pick-up loop option consists of two rectangular tubes with a T welded to the bottom of each. Insert the T into the slot, turn 90° to lock, then lift with a fork truck.
- Handles welded to one side allow the dockboard to be lifted for easier fork truck access.
