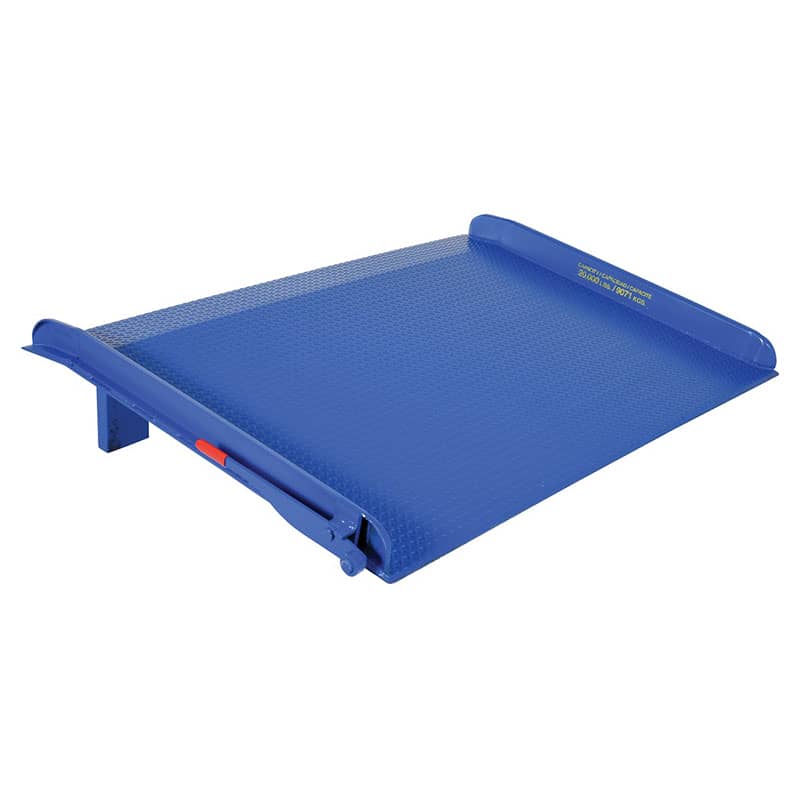

    Steel Truck Dockboard 20,000 lb. Cap. & 84" Wide

    Manufacturer: Vestil Mfg
    84" Wide Steel Truck Dockboards with a 20,000 lb. Capacity are constructed of high strength 55,000 psi steel.

    *Choose your dimensions and optional add-on's below

    0Types Available

    Steel Truck Dockboards 84 inches wide with a 20,000 lb. Capacity

    (Scroll Down to Choose Your Length)

    The Steel Truck Dockboard is constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard.
    The bend is 11 degrees and 9 inches from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.



    OPTIONS DESCRIPTION

    • Span pins and holes are like an extra set of legs in case the gap between the dock and the truck is wide enough that the plate may slide. These will help keep it stationary in wider gaps so it wont fall off the dock/truck to the ground below.
    • Sliding Span Locks The Sliding span locks  are basically adjustable legs.
    • The removable pick-up loop option is essentially two pieces of rectangle tube with a T welded to the bottom of each.  The board has two slots cut at 24” centers.  To use the lifting loops, you insert the T parallel into the slot, turn 90° so that the T is perpendicular with the slot, then lift with a fork truck.
    • The handles are two handles welded to one side so it can be lifted up high enough to get the fork lift under to pick it up.

    NEED HELP DETERMINING WHAT LENGTH YOU NEED?

    Reference: How Long Should Your Dock Board Be?

    This item may be too large for UPS Shipping. Is your order over 70 pounds? Or maybe too long or large? Then we will quote shipping cost to get the best LTL Shipping Rates.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.
    • Keep in mind, we do allow "Collect Shipping" on your carrier account. Choose collect shipping and enter in the carrier and the carrier acct # during the checkout process.

    Our goal is always to get the cheapest shipping cost available.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    0.0 0
    Write your own review Close
    • Questions can be ask only after purchasing it
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Steel Dockboard - 84" Wide X 48" Long
    84W X 48L Truck Dockboard with a 20,000 lb. Capacity
    SKU: SM-VS-TS-20-8448
    Manufacturer part number: TS-20-8448

    Welded on Lifting Chains for picking up the Dockboard with forks.

    9" from end is standard. If your loading reefers, 15" is recommended.

    See: How Long Should Your Dock Board Be?

    Welded on Chain is 144" Long

    *

    Do you understand that this product is "Made to Order" therefore there is NO REFUND once the process starts and takes longer to ship?

    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $2,231.45
    $2,188.82
    $2,147.78
    $2,095.39
    Old price: $2,386.42
    $2,260.82
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Shipping:: Made to Order. Currently ships in about 40 business days
    Steel Dockboard - 84" Wide X 60" Long
    84W X 60L Truck Dockboard with a 20,000 lb. Capacity
    SKU: SM-VS-TS-20-8460
    Manufacturer part number: TS-20-8460

    Welded on Lifting Chains for picking up the Dockboard with forks.

    9" from end is standard. If your loading reefers, 15" is recommended.

    See: How Long Should Your Dock Board Be?

    Welded on Chain is 144" Long

    *

    Do you understand that this product is "Made to Order" therefore there is NO REFUND once the process starts and takes longer to ship?

    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $2,527.23
    $2,495.84
    $2,450.18
    $2,406.17
    Old price: $2,733.54
    $2,592.45
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Shipping:: Made to Order. Currently ships in about 40 business days
