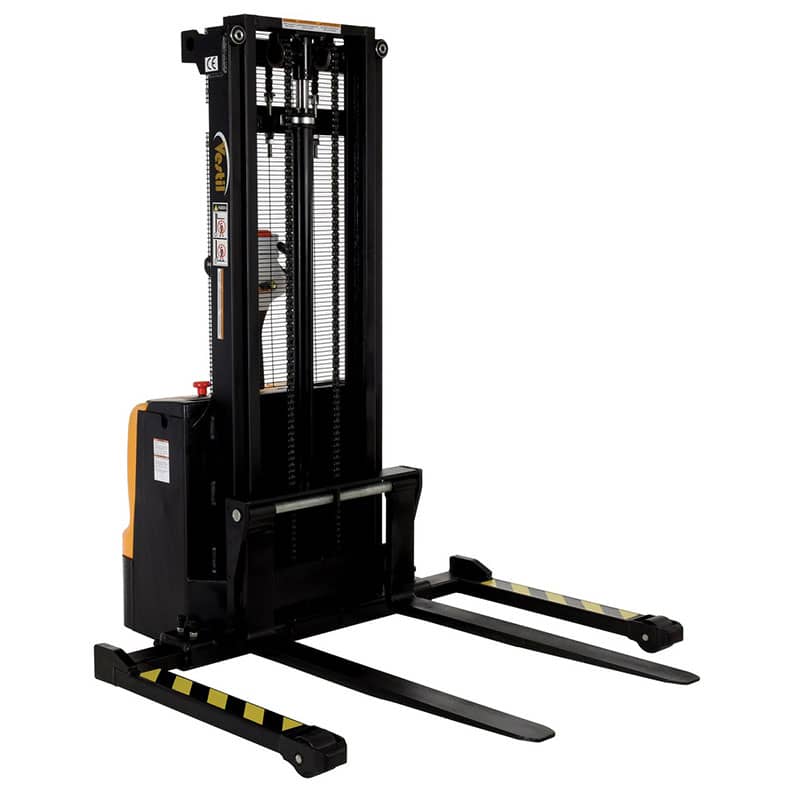

    Double Mast Fully Powered Electric Stacker up to 118"H

    Manufacturer: Vestil Mfg
    Double Mast Stacker with Powered Drive and Powered Lift - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids).
    0Types Available

    Double Mast Fully Powered Electric Stacker

    Double mast full powered electric stacker transports loads quickly and effortlessly. The high torque 24Volt DC drive and lift motor can do heavy-duty jobs. The ergonomic handle has a easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

    Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Double Mast Stacker with Powered Drive and Powered Lift
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)

    Adjustable Forks / Adjustable Support Legs (works with pallets & skids)

    S-101-AA-DM8.3"to26-3/4"x42"2-1/8"101"2,200 lbs.1,500 lbs.1374
    S-118-AA-DM8.3"to26-3/4"x42"2-1/8"118"2,200 lbs.1,500 lbs.1422

    Options

    ModelDescriptionWt (lbs.)
    S3-SDG-RFSingle Drum Gripper Attachment62
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit50

    Go to Survey FormGo to Options for Stackers

    This item is too large for UPS Shipping.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    Fork TypeAdjustable Forks
    TypeFull Power
    Power TypeDC - DC 12V battery
    Support Leg TypeAdjustable Legs
