    Manufacturer: Vestil Mfg

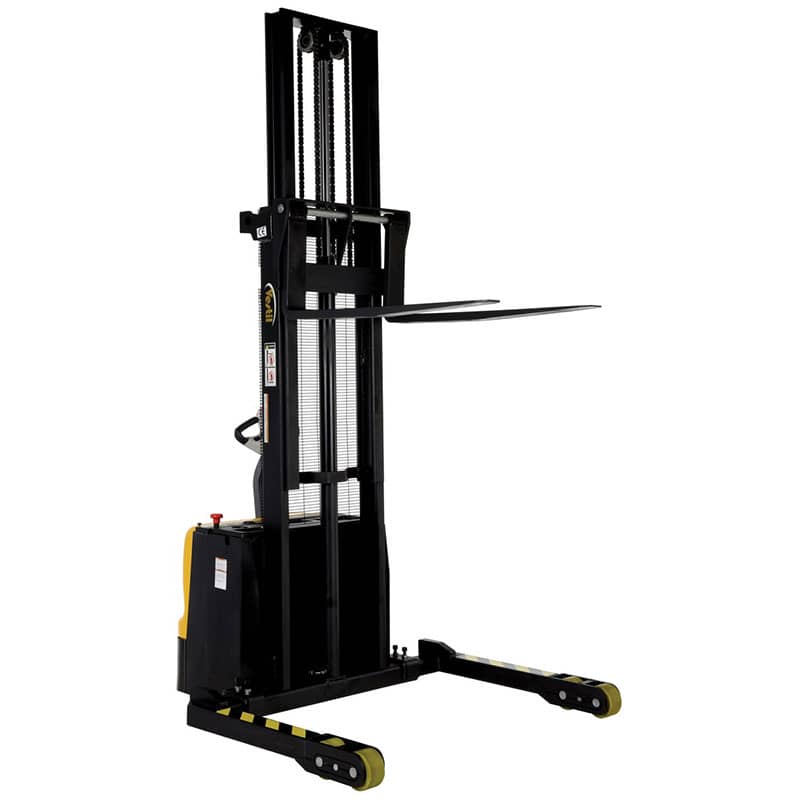

    Double Mast Stacker with Powered Drive and Powered Lift up to 125" High

    Stacker Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids).,

    Scroll Down

    Double Mast Fully Powered Electric Stackers up to 125" High

    Double mast full powered electric stacker transports loads quickly and effortlessly. The high torque 24Volt DC drive and lift motor can do heavy-duty jobs. The ergonomic handle has a easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

    Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Double Mast Stacker with Powered Drive and Powered Lift
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Uniform
    Capacity
    118"-125" RH
    Wt.
    (lbs)

    Adjustable Forks / Adjustable Support Legs (works with pallets & skids)

    S3-43-AA4"x42"2-1/8"43"3,000 lbs.----1246
    S3-62-AA8.3"to26-3/4"x42"2-1/8"62"3,000 lbs.----2250
    S3-118-AA8.3"to26-3/4"x42"2-1/8"118"3,000 lbs.2,500 lbs.--1972
    S3-125-AA8.3"to26-3/4"x42"2-1/8"125"3,000 lbs.2,500 lbs.2,000 lbs.2415

    Options

    ModelDescriptionWt (lbs.)
    S3-SDG-RFSingle Drum Gripper Attachment62
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit50

    Scroll Down

    Go to Survey FormGo to Options for Stackers

    Double Mast Fully Powered Electric Stackers up to 125" High

    Double mast full powered electric stacker transports loads quickly and effortlessly. The high torque 24Volt DC drive and lift motor can do heavy-duty jobs. The ergonomic handle has a easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift and lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. Feature 1.0 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

    Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Double Mast Stacker with Powered Drive and Powered Lift
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Uniform
    Capacity
    118"-125" RH
    Wt.
    (lbs)

    Adjustable Forks / Adjustable Support Legs (works with pallets & skids)

    S3-43-AA4"x42"2-1/8"43"3,000 lbs.----1246
    S3-62-AA8.3"to26-3/4"x42"2-1/8"62"3,000 lbs.----2250
    S3-118-AA8.3"to26-3/4"x42"2-1/8"118"3,000 lbs.2,500 lbs.--1972
    S3-125-AA8.3"to26-3/4"x42"2-1/8"125"3,000 lbs.2,500 lbs.2,000 lbs.2415

    Options

    ModelDescriptionWt (lbs.)
    S3-SDG-RFSingle Drum Gripper Attachment62
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit50

    Scroll Down

    Go to Survey FormGo to Options for Stackers

    Products specifications
    Fork TypeAdjustable Forks
    Power TypeDC - DC 12V battery
    Support Leg TypeAdjustable Legs
    TypeFull Power
    Ask a Question or Leave a Review
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Stacker Pwr Drive Aa 62 In
    $8,279.81
    Double Mast Stacker with Powered Drive and Powered Lift - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids)., , Forks (WXL): 8.3"to26-3/4"x42", "Lowered Height: 2-1/8", Raised Height: 62", Uniform Capacity (lbs) 0"-62" RH: 3,000 lbs., Weight: 2250
    SKU: S3-62-AA
    Manufacturer part number: S3-62-AA
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $8,028.91
    $7,792.76
    $7,570.11
    $7,359.83
    Shipping:: 3-5 days
    Stacker Pwr Drive Aa 118 In
    $10,601.25
    Double Mast Stacker with Powered Drive and Powered Lift - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids)., , Forks (WXL): 8.3"to26-3/4"x42", "Lowered Height: 2-1/8", Raised Height: 118", Uniform Capacity (lbs) 0"-62" RH: 3,000 lbs., "Capacity (lbs) 62"-118" RH,: 2,500 lbs., Weight: 1972
    SKU: S3-118-AA
    Manufacturer part number: S3-118-AA
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $10,280.00
    $9,977.65
    $9,692.57
    $9,423.33
    Shipping:: 3-5 days
    Stacker Dbl Mast 125 In Adj 3000 Lb
    $10,533.94
    Double Mast Stacker with Powered Drive and Powered Lift - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids)., , Forks (WXL): 8.3"to26-3/4"x42", "Lowered Height: 2-1/8", Raised Height: 125", Uniform Capacity (lbs) 0"-62" RH: 3,000 lbs., "Capacity (lbs) 62"-118" RH,: 2,500 lbs., Uniform Capacity 118"-150" RH: 2000 lb., , Weight: 2415
    SKU: S3-125-AA
    Manufacturer part number: S3-125-AA
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $10,214.73
    $9,914.29
    $9,631.03
    $9,363.50
    Shipping:: 3-5 days
    Products specifications
    Fork TypeAdjustable Forks
    Power TypeDC - DC 12V battery
    Support Leg TypeAdjustable Legs
    TypeFull Power
