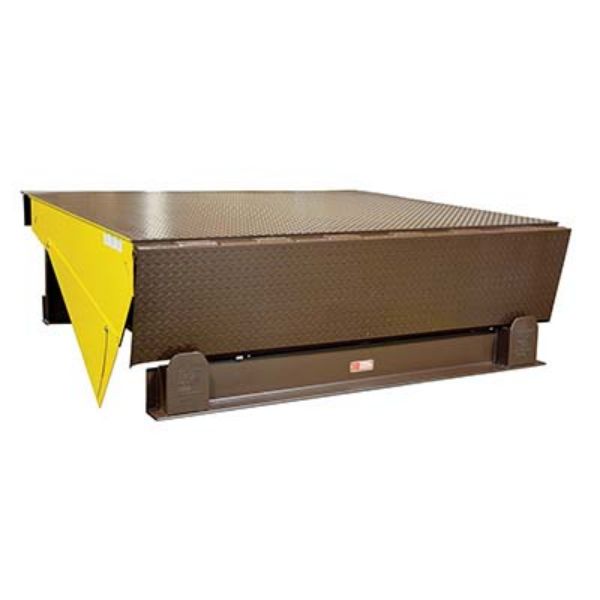

Electric Hydraulic Dock Leveler

Electric Hydraulic Dock Levelers

The Electric Hydraulic Dock Leveler is perfect for high usage dock areas. Its state-of-the-art hydraulic design allows for easy operation with a simple push of a button. The operator pushes and holds the "raise" button to activate the hydraulic pump, raising the deck. Once the deck reaches the raised position, the lip automatically extends. Releasing the "raise" button allows the deck to descend and rest on the trailer. The control box includes a standard red emergency stop button. When the truck pulls away, the deck descends to a full down position, trips the limit switch, and returns automatically to the level cross traffic position. The unit includes telescopic steel toe guards on both sides, flush with the platform edge, a service range of +/- 12", and two laminated bumpers. Standard voltage is 460V 3-Phase. Uniform capacities are available up to 80,000 pounds; contact the factory for details.

• State-of-the-art hydraulic design with simple push-button operation
• Automatically extending lip for easy loading/unloading
• Control box includes a red emergency stop button for optimal safety
• Telescopic steel toe guards on both sides for added safety
