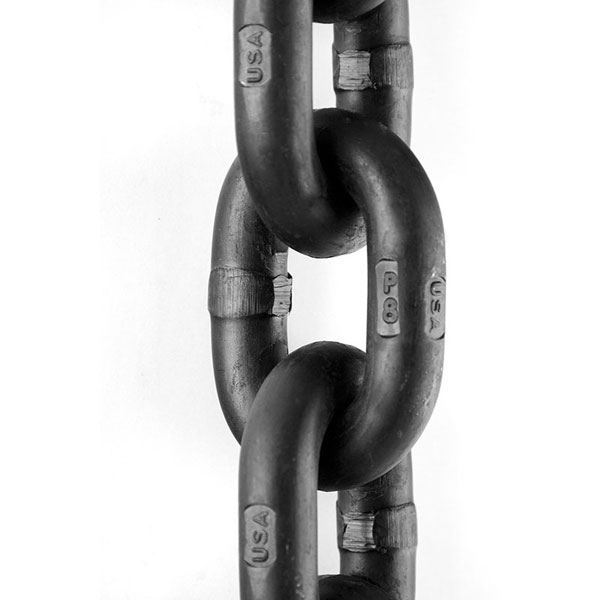

Peerless Grade 80 chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM) and ASTM A391/A391M. This is in line with the higher 4-to-1 design factor required by the International Standards Organization (ISO). For fast identification, Peerless Grade 80 chain is embossed USA and stamped P8. For quality control purposes, Peerless chain is date coded for easy traceability.
Grade 80 Chain, Strong Alloy Lifting Approved, Made in America
Grade 80 Chain used in overhead lifting applications. 80 Chain has excellent energy absorption and is manufactured using special analysis alloy steel. G80 alloy chain is rugged, versatile, high-strength, low-weight chain. Quenched and tempered before proof testing, Grade 80 chain specs have tensile strength twice of ordinary steel chain.
Peerless Grade 80 chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM) and ASTM A391/A391M. This is in line with the higher 4-to-1 design factor required by the International Standards Organization (ISO). For fast identification, Peerless Grade 80 chain is embossed USA and stamped P8. For quality control purposes, Peerless chain is date coded for easy traceability.
All heavy duty 80 Grade lifting chain with the 'PEERLESS OVERHEAD LIFTING APPROVED' symbol meets or exceeds the overhead lifting industry requirements.
| P/N & Description | Package Type | Trade Size inchs | Wire Dia. | Inside Dim. Length (Nominal) | Inside Dim. Width (Min) | Ft/Drum | Weight (Lbs./ft.) | Weight p/Drum | Working Load Limit lbs. |
| 5050223 - 9/32" Grade 80 Alloy Chain | Full Drum | 9/32 | 0.279 | 0.827 | 0.405 | 800 | 0.763 | 610 | 3,500 |
| 5050323 - 5/16" Grade 80 Alloy Chain | Full Drum | 5/16 | 0.31 | 0.945 | 0.48 | 500 | 0.914 | 457 | 4,500 |
| 5050423 - 3/8" Grade 80 Alloy Chain | Full Drum | 3/8 | 0.392 | 1.182 | 0.56 | 500 | 1.474 | 737 | 7,100 |
| 5050623 - 1/2" Grade 80 Alloy Chain | Full Drum | 1/2 | 0.516 | 1.535 | 0.75 | 300 | 2.478 | 743 | 12,000 |
| 5050823 - 5/8" Grade 80 Alloy Chain | Full Drum | 5/8 | 0.63 | 1.89 | 0.902 | 200 | 3.625 | 725 | 18,100 |
| 5050923 - 3/4" Grade 80 Alloy Chain | Full Drum | 3/4 | 0.781 | 2.42 | 1.14 | 100 | 5.75 | 575 | 28,300 |
| 5051023 - 7/8" Grade 80 Alloy Chain | Full Drum | 7/8 | 0.906 | 2.66 | 1.26 | 100 | 7.66 | 766 | 34,200 |
| 5051123 - 1" Grade 80 Alloy Chain | Full Drum | 1 | 1.032 | 2.9 | 1.42 | 50 | 10.98 | 549 | 47,700 |
| 5051223 - 1-1/4" Grade 80 Alloy Chain | Full Drum | 1-1/4 | 1.26 | 3.78 | 1.64 | 66 | 15.5 | 1023 | 72,300 |
| 5051323 - 1-1/2" Grade 80 Alloy Chain | Full Drum | 1-1/2 | 1.496 | 4.49 | 1.93 | 50 | 20.9 | 1045 | 100,000 |
| 5051423 - 1-3/4" Grade 80 Alloy Chain | Full Drum | 1-3/4 | 1.771 | 5.315 | 2.303 | 196 | 30.5 | 5978 | 126,000 |
| 5051523 - 2" Grade 80 Alloy Chain | Full Drum | 2 | 1.969 | 5.905 | 2.559 | 246 | 37.65 | 9262 | 160,000 |
| 5050224 - 9/32" Grade 80 Alloy Chain | Half Drum | 9/32 | 0.279 | 0.827 | 0.405 | 400 | 0.763 | 305 | 3,500 |
| 5050324 - 5/16" Grade 80 Alloy Chain | Half Drum | 5/16 | 0.31 | 0.945 | 0.48 | 250 | 0.916 | 229 | 4,500 |
| 5050424 - 3/8" Grade 80 Alloy Chain | Half Drum | 3/8 | 0.392 | 1.182 | 0.56 | 250 | 1.476 | 369 | 7,100 |
| 5050624 - 1/2" Grade 80 Alloy Chain | Half Drum | 1/2 | 0.516 | 1.535 | 0.75 | 150 | 2.48 | 372 | 12,000 |
*Scroll down to choose your referenced size.
